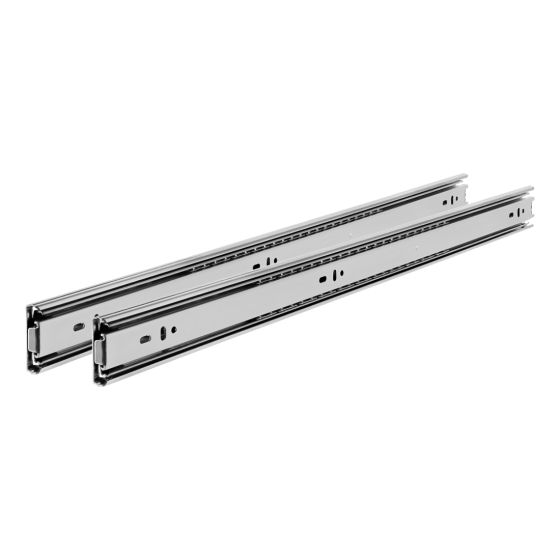

14" Drawer Slide
- Fully extendable length, travel 14.763" (375mm)

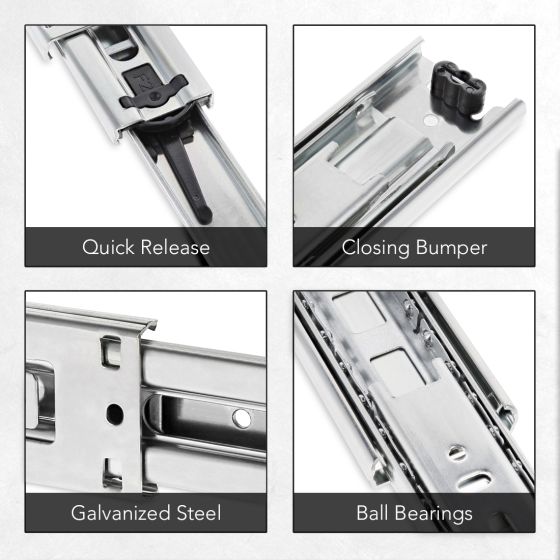

- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation

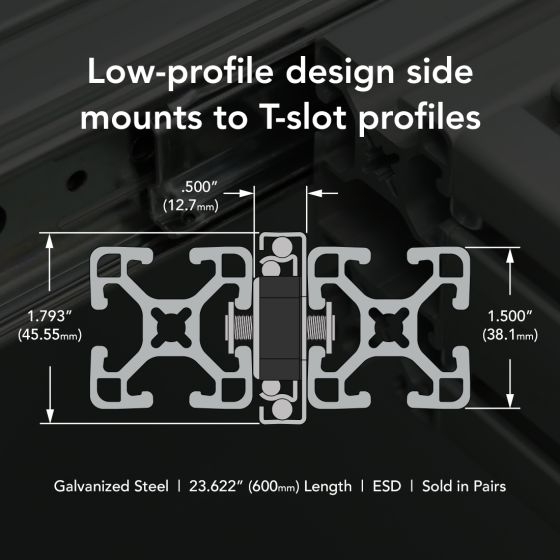

- Low profile design for space savings

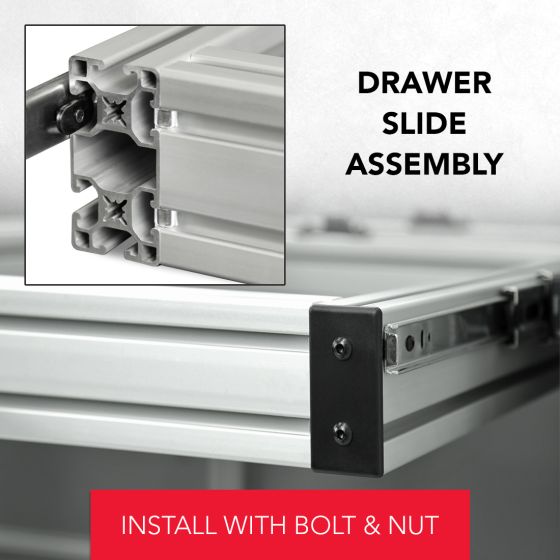

- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
**Suggested Hardware**
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 10/15/30/40 | 3005 | 16 |
8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 10/15/30/40 | 3275 | 16 |
8-32 Slide-in Economy T-Nut - Centered Thread |
| 10 | 3006 | 16 |
.188" ID Washer |
| Weight | 2.304000 |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material | Galvanized Steel |
| Load Capacity | 100 lbs per pair |

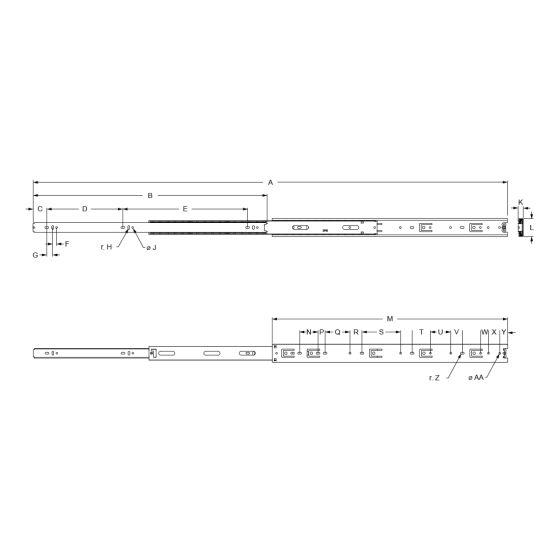

| A | 27.779" (705.61mm) |
| B | 13.779" (350.01mm) |
| C | 1.423" (36.16mm) |
| D | 3.740" (95.00mm) |
| E | 5.922" (150.44mm) |
| F | 0.302" (7.68mm) |
| G | 0.583" (14.82mm) |
| H | 0.067" (2.23mm) |
| J | 0.172" (4.37mm) |
| K | 0.500" (12.70mm) |
| L | 1.798" (45.64mm) |
| M | 13.779" (350.01mm) |
| N | 1.659" (47.23mm) |
| P | 0.707" (17.97mm) |
| Q | 2.609" (66.29mm) |
| R | 1.169" (29.71mm) |
| S | 1.822" (46.29mm) |
| T | 0.787" (20.00mm) |
| U | 1.217" (30.93mm) |
| V | 0.787" (20.00mm) |
| W | 0.087" (2.21mm) |
| X | 0.187" (4.75mm) |
| \ | |
