14037 - 30 Series, M10 Center Tap Base Plate

SKU: 14037

$26.12 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.
Description Customs Cuts and Machining CAD Models Returns

14037 - 30 Series, M10 Center Tap Base Plate

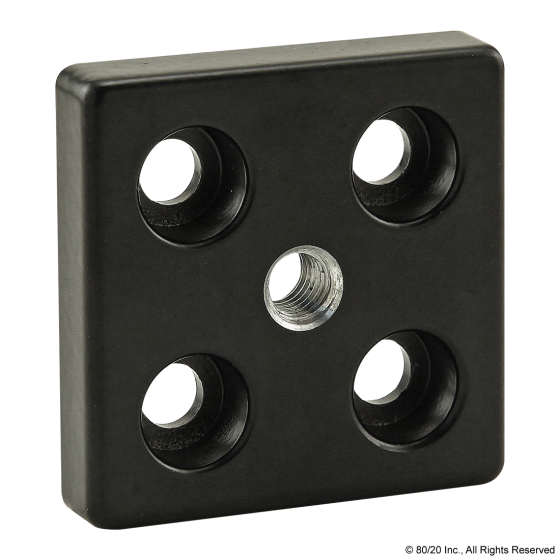

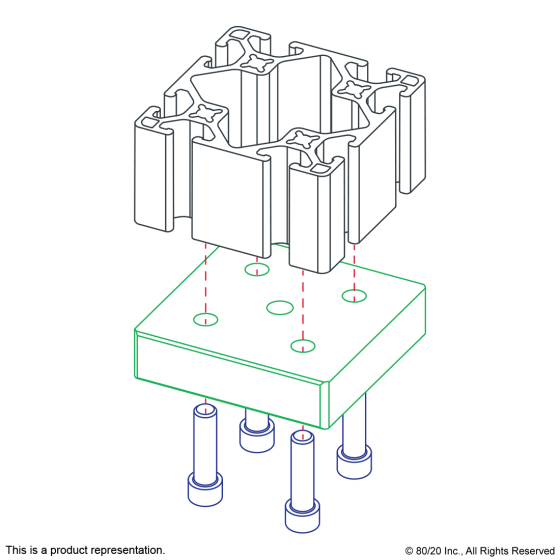

The 5 hole – die-cast center tap base plate has a black finish. It mounts leveling feet and threaded stem casters, and is commonly used on profiles with eight slots to center mount the foot or caster. This base plate can also be used on a profile side. It requires a tap to mount to a profile end. Additional Information: When using an M12 socket head cap screw (SHCS) the base plate can only be mounted to the profile end.

Series 30 Series
Material Zinc
Grade GD-ZnAlCU1
Process Die Cast
Finish Powder Coat
Color Black
A 30.00mm
B 15.00mm
C 60.00mm
D 30.00mm
E 15.00mm
F 30.00mm
G 30.00mm
H M8 SHCS
J M10 X 1.50
K 12.00mm
L 60.00mm
Weight 0.352000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
