1515 - 1.50” X 1.50” T-Slotted Profile - Four Open T-Slots

SKU: 1515-24

$30.91 CAD

Length in Inches (for custom lengths and machining contact sales@rmmc.net): 24
Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.
Description Customs Cuts and Machining CAD Models Returns

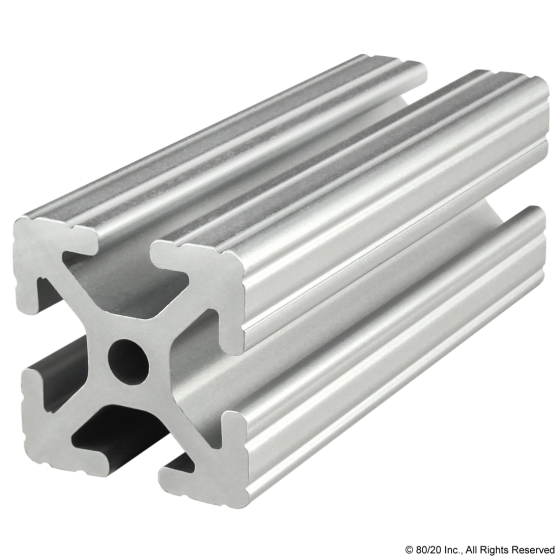

1515 - 1.5” X 1.5” T-Slotted Extrusion -  Four Open T-Slots

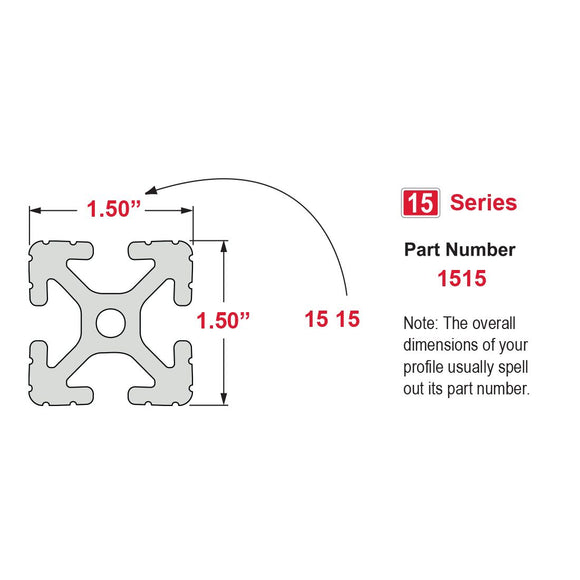

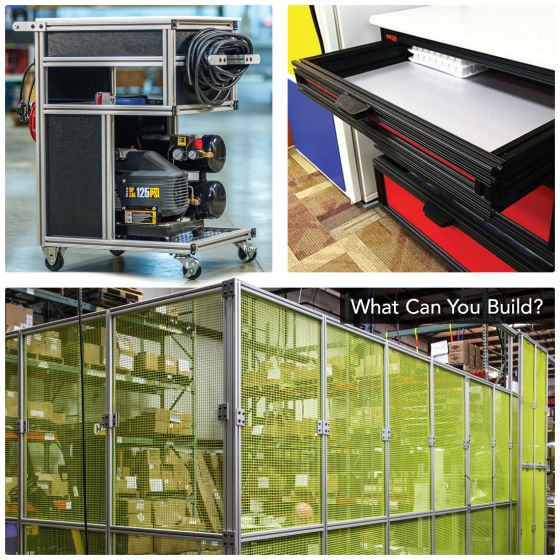

1515 is a 1.50” x 1.50” fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515 profile is compatible with all 15 series fasteners. This profile is the most heavy-duty in the 1515 profile family and lends itself to clean room applications, guards, enclosures, or desks.

Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 0.2542"⁴
Moment of Inertia - IY 0.2542"⁴
Surface Area 1.152 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.1123 per inch
Weight 0.112300


Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
