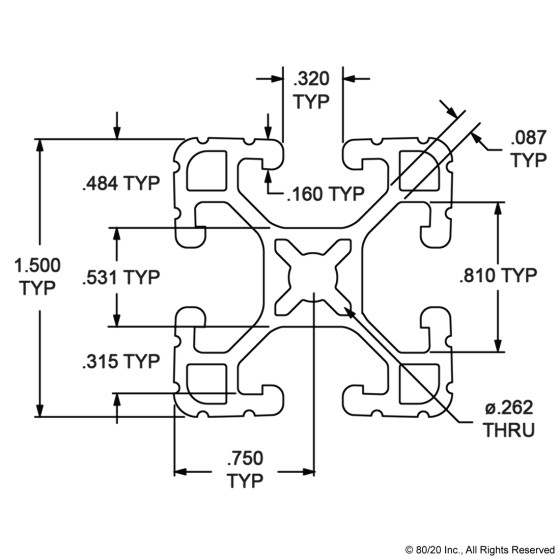

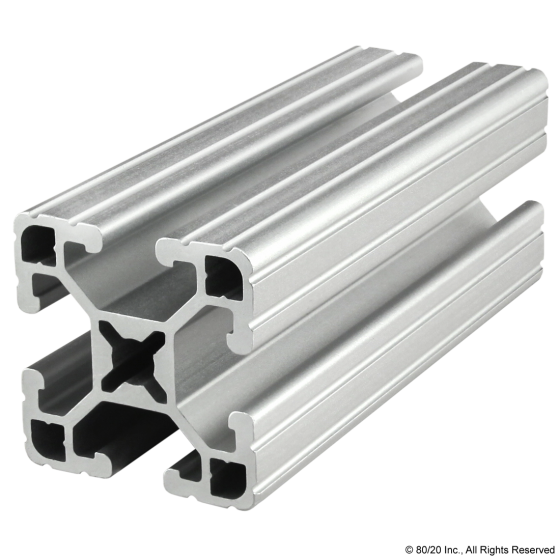

1515-UL - 1.50” X 1.50” Ultra-Lite T-Slotted Profile - Four Open T-Slots

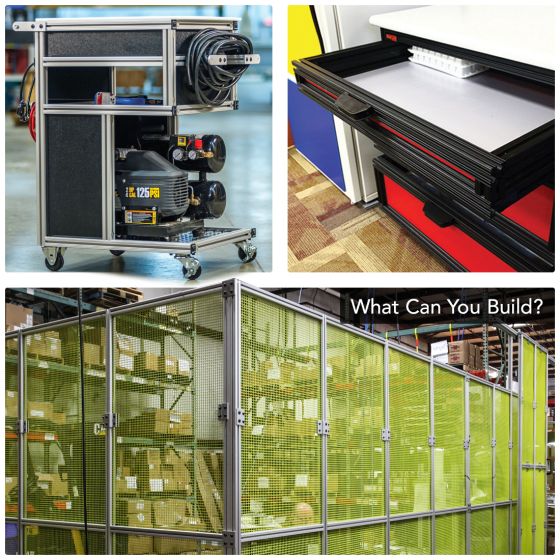

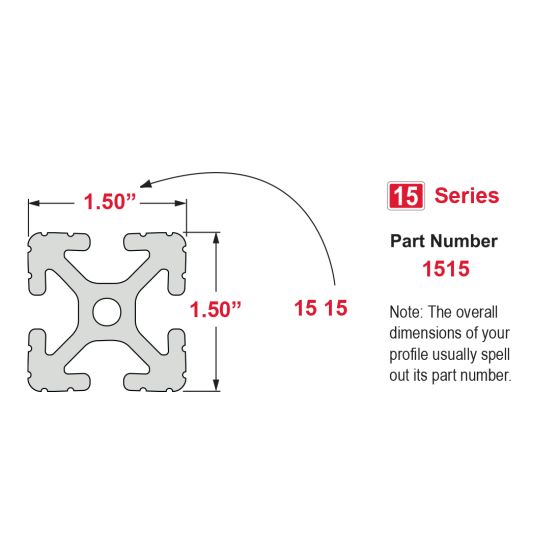

1515-UL is a 1.50” x 1.50” ultra-lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-UL profile is compatible with all 15 series fasteners. The 1515-UL profile is the lightest in the 1515 profile family and lends itself to machine guards, sound enclosures, work benches, panel mount racks or displays. The four open T-slots enable access from any direction and are useful for mounting accessories.
| Max Length (inches) | 242.000000 |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |

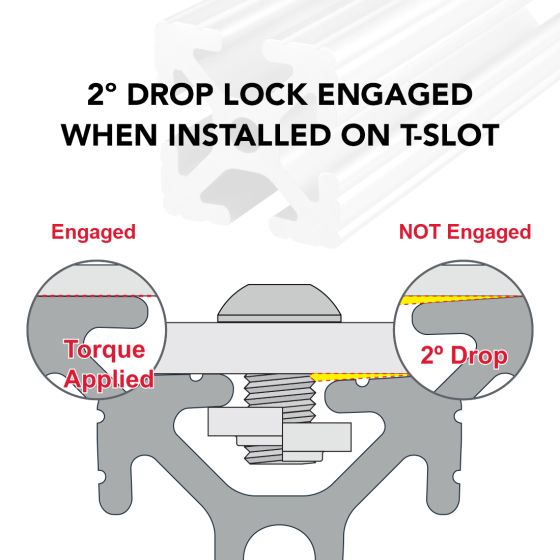

| Drop Lock | 2° |
| Moment of Inertia - IX | 0.1772"⁴ |
| Moment of Inertia - IY | 0.1772"⁴ |
| Surface Area | 0.787 Sq. In. |
| Yield Strength | 25,000 psi |
| Modulus of Elasticity | 10,000,000 Lbs. / Sq. In. |
| Weight lbs | 0.0768 per inch |
| Weight | 0.076800 |
1515-UL - 1.50” X 1.50” Ultra-Lite T-Slotted Profile
1515-UL is a 1.50” x 1.50” ultra-lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-UL profile is compatible with all 15 series fasteners. The 1515-UL profile is the lightest in the 1515 profile family and lends itself to machine guards, sound enclosures, work benches, panel mount racks or displays. The four open T-slots enable access from any direction and are useful for mounting accessories.
USA Made from 80/20 Inc
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Drop Lock | 2° |
| Moment of Inertia - IX | 0.1772"⁴ |
| Moment of Inertia - IY | 0.1772"⁴ |
| Surface Area | 0.787 Sq. In. |
| Yield Strength | 35,000 psi. |
| Modulus of Elasticity | 10,200,000 Lbs / Sq. In. |
| Weight lbs | 0.0768 |
| Weight | 0.0768 |
