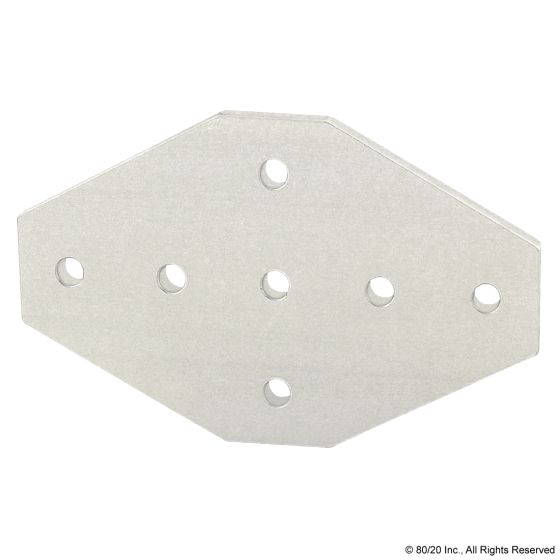

4335 - 15 Series & Ready Tube 7 Hole - Cross Flat Plate
The 7 hole - cross flat plate is an external fastening method that can be used to join more than two profiles or even create a 4-way connection hub. It provides a strong, long-lasting connection that is easy to assemble and requires no machining services. The 7 hole - cross flat plate is durable and can be repositioned and reused. The suggested mounting hardware can be found on the "Suggested Hardware" tab. Tip: Use double or triple slide-in economy T-nuts to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

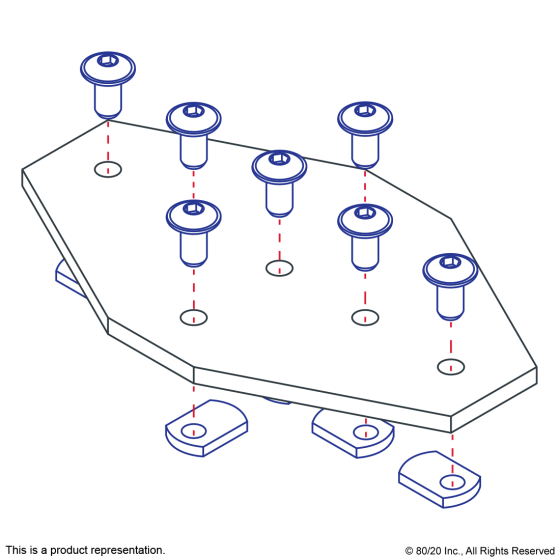

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3320 | 7 |
Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc |
| Series | 15 Series, Ready Tube |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| A | 4.500" |
| B | 7.500" |
| C | 1.500" |
| D | .750" |
| E | .328" |
| F | .250" |
| G | 1.500" |
| H | 1.500" |
| Weight | 0.569000 |
