SKU: 1515-Lite-24

$25.87 CAD

Length in Inches (for custom lengths and machining contact sales@rmmc.net): 24
Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.
Description Customs Cuts and Machining CAD Models Returns

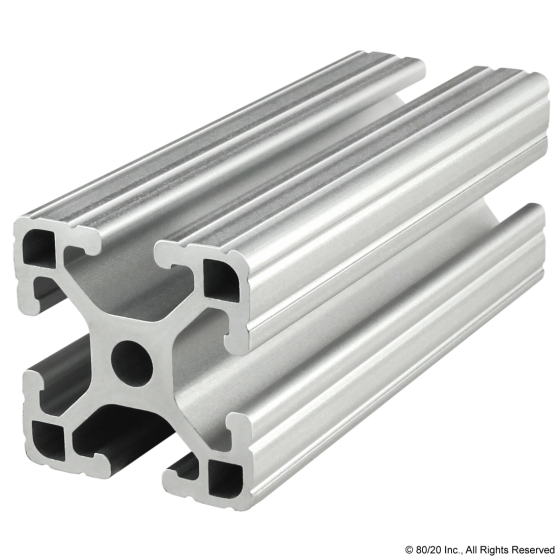

1515-Lite - 1.5” X 1.5” Lite T-Slotted Extrusion-Four Open T-Slots

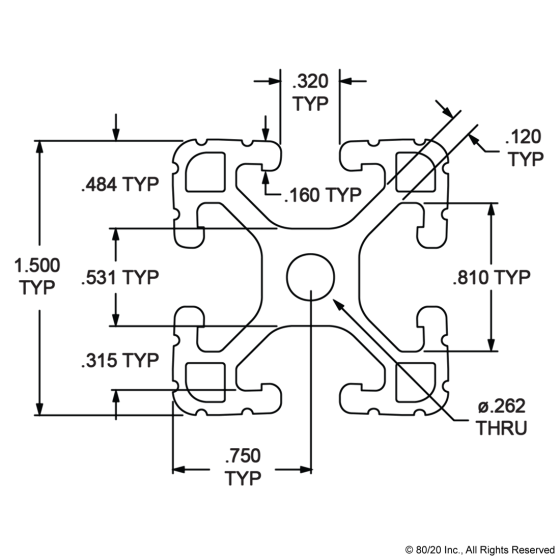

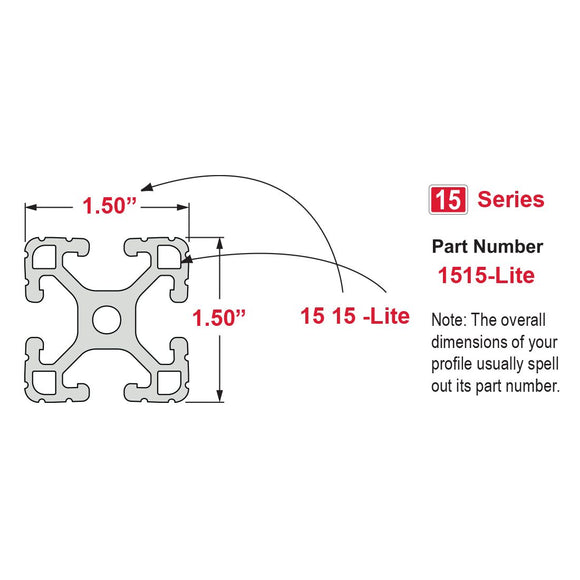

1515-Lite is a 1.50” x 1.50” lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-Lite profile is compatible with all 15 series fasteners. This profile lends itself to machine guards, enclosures or work benches. The four open T-slots enable access from any direction and are useful for mounting accessories.

Max Length (inches) 242.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

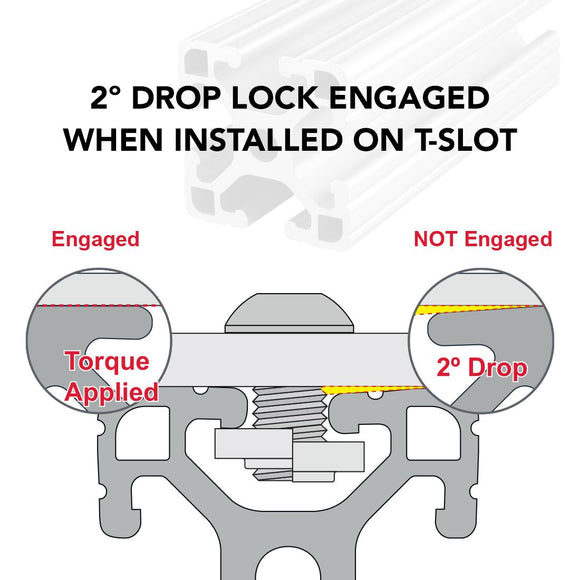

Drop Lock 2°
Moment of Inertia - IX 0.1853"⁴
Moment of Inertia - IY 0.1853"⁴
Surface Area 0.896 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.0873 per inch
Weight 0.087300

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
