1530 - 1.5” X 3” T-Slotted Extrusion - Six Open T-Slots

SKU: 1530-24

$57.46 CAD

Length in Inches (for custom lengths and machining contact sales@rmmc.net): 24
Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.
Description Customs Cuts and Machining CAD Models Returns

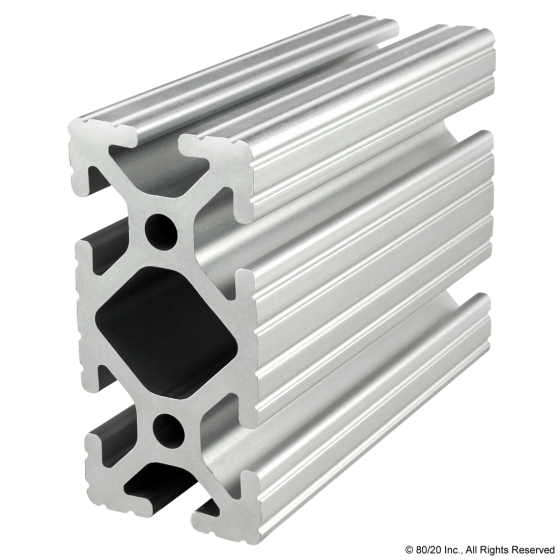

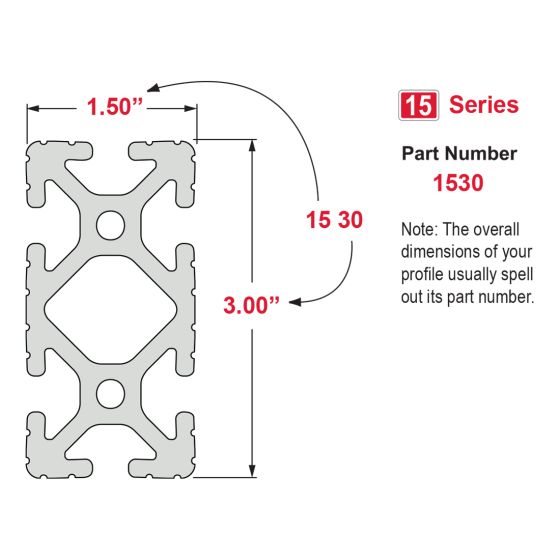

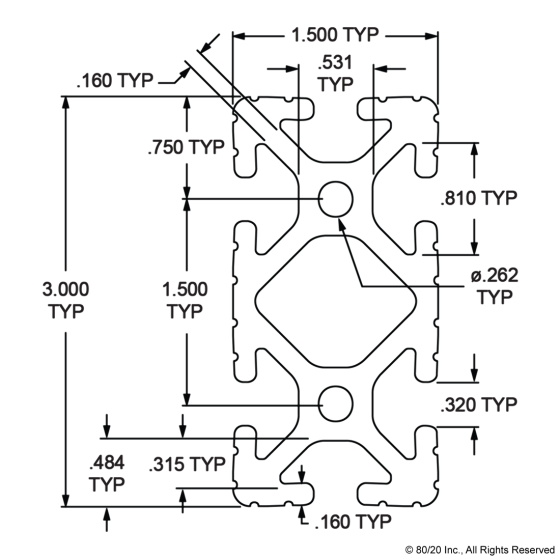

1.50” X 3.00” T-Slotted Profile - Six Open T-Slots

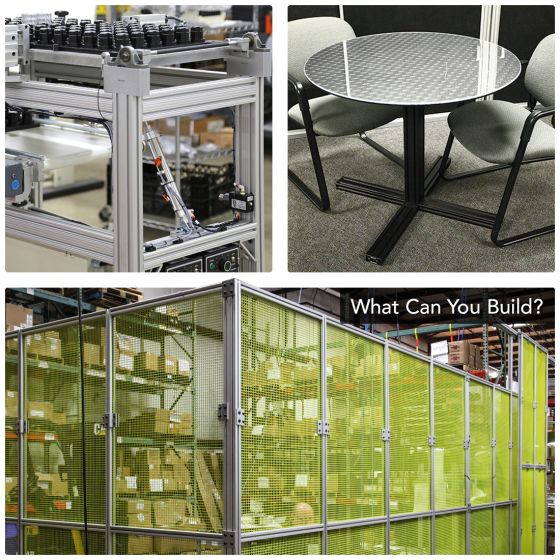

1530 is a 1.50” x 3.00” fractional 15 series rectangular T-slot profile with six open T-slots, two on each 3.00” face and one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1530 profile is compatible with 15 series fasteners. The center cavity of the profile can be pressurized up to 150 psi, lending itself to work spaces, machine guards, displays and panel mount racks.

Max Length (inches) 242.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

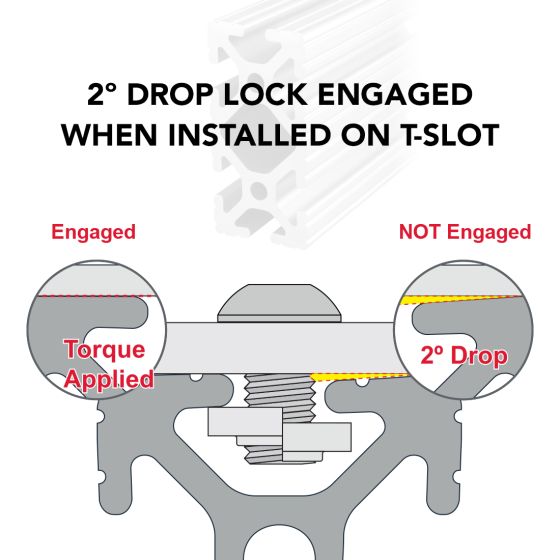

Drop Lock 2°
Moment of Inertia - IX 1.8042"⁴
Moment of Inertia - IY 0.4824"⁴
Surface Area 2.077 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs .2025 per inch
Weight 0.202500

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
