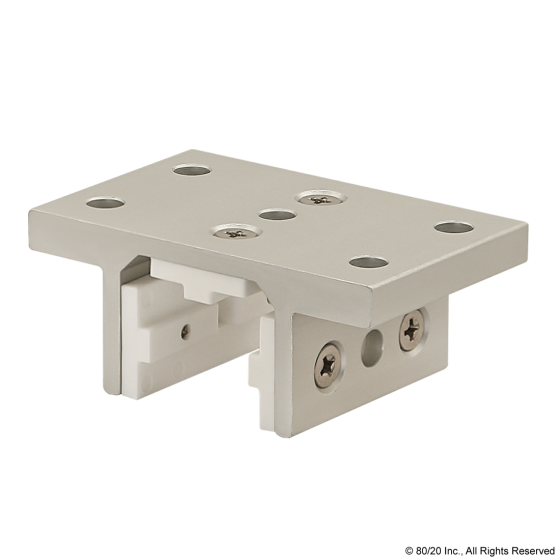

6425 10 Series 3 Slot Mount - Double Flange Short Standard Linear Bearing w/ Brake Holes
The 3-slot mount double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
USA Made from 80/20 Inc
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 1.218" |
| B | .312" |
| C | .906" |
| D | .094" |
| E | 1.624" |
| F | .156" |
| G | 1.312" |
| H | .306" |
| J | .656" |
| K | .156" |
| L | 2.936" |
| M | 1.875" |
| N | .938" |
| P | .438" |
| Q | .343" |
| R | 1.468" |
| S | 1.000" |
| T | #8 FHS |
| U | .265" |
| V | .257" |
| W | 2.250" |
| X | 1.000" |
| Y | .438" |
| Z | .406" |
| Weight | 0.2050 |
