12085 - 15 Series 4 Hole - Slotted Locking Zinc Hinge

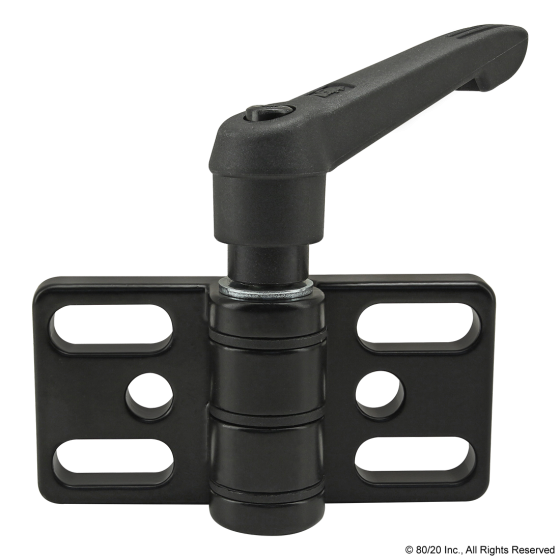

The 4 hole - slotted locking zinc hinge is die-cast black powder-coated zinc with a stainless steel pin. It is a higher-strength hinge that is commonly used to connect doors and plastic panels to T-slot profiles. The hinge has slotted holes to support adjustments and a ratcheting clamp handle for locking the hinge in position. It also features slot tabs to assist with alignment.
NOTE: Hardware not included
Suggested Hardware:
Per Leaf Mount to Panel LTE .250" / 6mm
| Part Number | Qty | Description |
|---|---|---|
| 3117 | 2 |
5/16-18 x .875" Button Head Socket Cap Screw (BHSCS) |
| 3214 | 2 |
5/16-18 Hex Nut |
| 3260 | 2 |
.349" ID Washer |

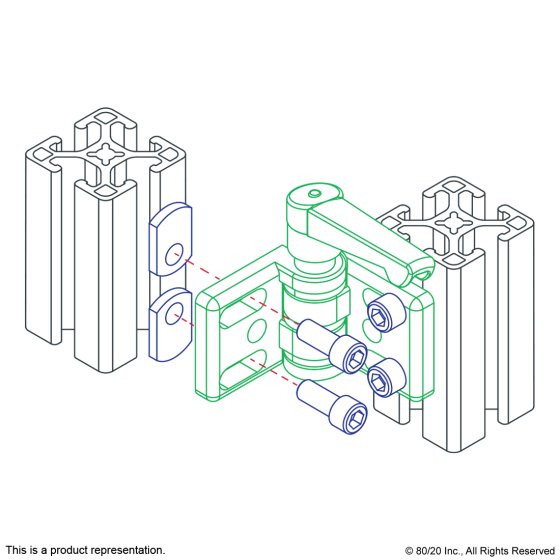

Per Leaf Mount to T-slot
| Part Number | Qty | Description |
|---|---|---|
| 3112 | 2 |
5/16-18 x .750" Socket Head Cap Screw (SHCS) |
| 3278 | 2 |
5/16-18 Slide-in Economy T-Nut - Offset Thread |

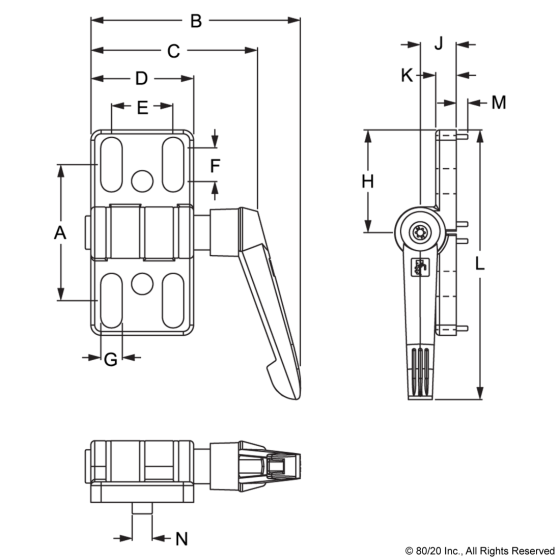

| Series | 15 Series, 40 Series, 45 Series |
| Material | Zinc |
| Grade | Die-Cast |
| Finish | Powder Coat |
| Color | Black |
| Process | Die Cast |
| Max Load | 250 Nm / 184 ft-Lbs. |
| A | 53.00mm |
| B | 81.00mm |
| C | 69.00mm |
| D | 40.00mm |
| E | 24.00mm |
| F | 13.00mm |
| G | 8.30mm |
| H | 40.00mm |
| J | 14.00mm |
| K | 8.00mm |
| L | 105.00mm |
| M | n/a |
| N | n/a |
| Weight | 0.4750 |
