12086 - 15 & 40 Series 4 Hole - Slotted Locking Zinc Hinge

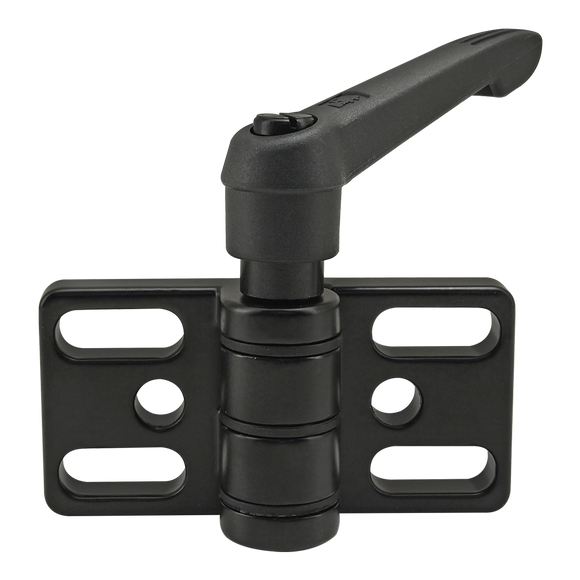

The 4 hole - slotted locking zinc hinge is die-cast black powder-coated zinc with a stainless steel pin. It is a higher-strength hinge that is commonly used to connect doors and plastic panels to T-slot profiles. The hinge has slotted holes to support adjustments and a ratcheting clamp handle for locking the hinge in position. It also features slot tabs to assist with alignment.
For technical details, suggested hardware and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
3455 | 2 | Bolt Assembly: 5/16-18 x .750" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
 |
75-3634 | 2 | Bolt Assembly: M8 x 18.00mm Black SHCS with Slide-In T-Nut - Bright Zinc |
| ESD Safe | No |
| Series | 15 Series, 40 Series |
| Material | Zinc |
| Grade | Die-Cast |
| Finish | Powder Coat |
| Color | Black |
| Process | Die Cast |
| Max Load | 250 Nm / 184 ft-Lbs. |
| A | 53.00mm |
| B | 81.60mm |
| C | 65.00mm |
| D | 40.00mm |
| E | 24.00mm |
| F | 13.00mm |
| G | 8.30mm |
| H | 40.00mm |
| J | 14.00mm |
| K | 8.00mm |
| L | 105.00mm |
| M | 4.50mm |
| N | 7.80mm |
| Weight | 0.470000 |
For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.
