12098 - 10 & 25 Series 4 Hole - Standard Plastic Hinge

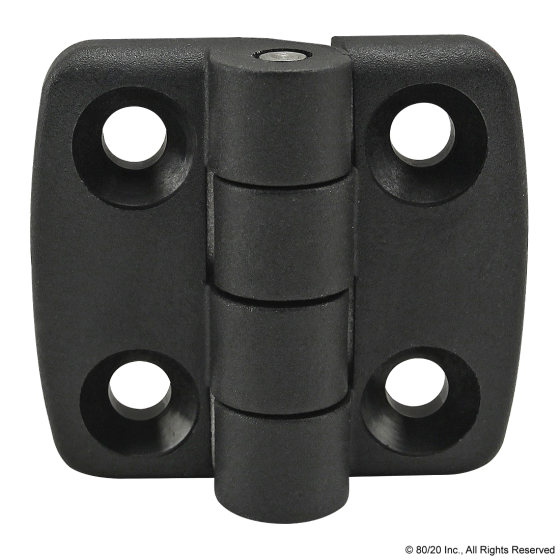

The 4 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).

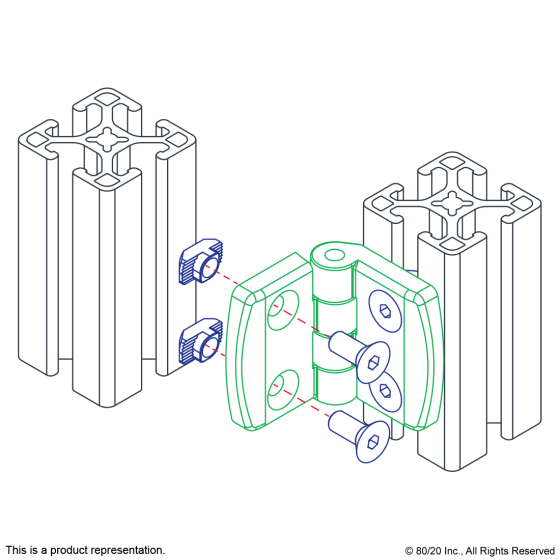

Suggested Hardware:

Series Part Number Qty Description

3400 & 3204

 4 Bolt Assembly: 1/4-20 x .500" Black FHSCS with Standard Slide-In T-Nut - Black Zinc



Series 10 Series, 25 Series
Material Nylon PA Glass Fiber Reinforced
Color Black
Process Injection Molded
Max Load 30 Nm / 22 ft-Lbs.

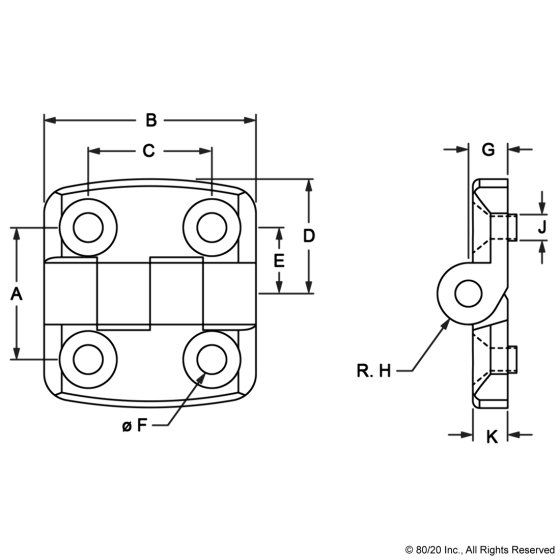

A 30.00mm
B 48.00mm
C 28.00mm
D 26.00mm
E 15.00mm
F 6.60mm
G 8.95mm
H 7.00mm
J n/a
K 7.40mm
Weight 0.074000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
