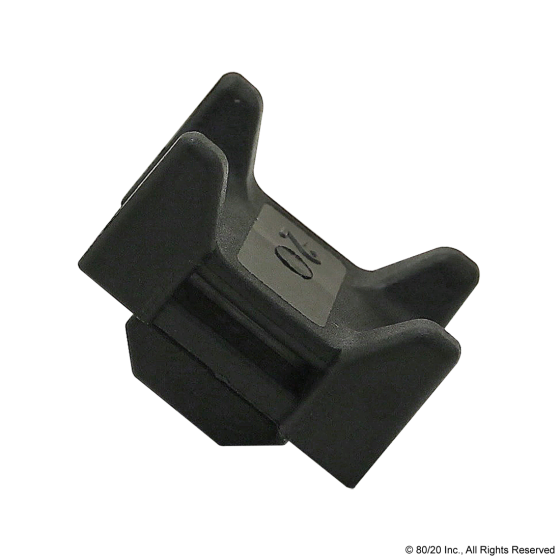

12314 - 10 Series Cable Tie Mounting Block

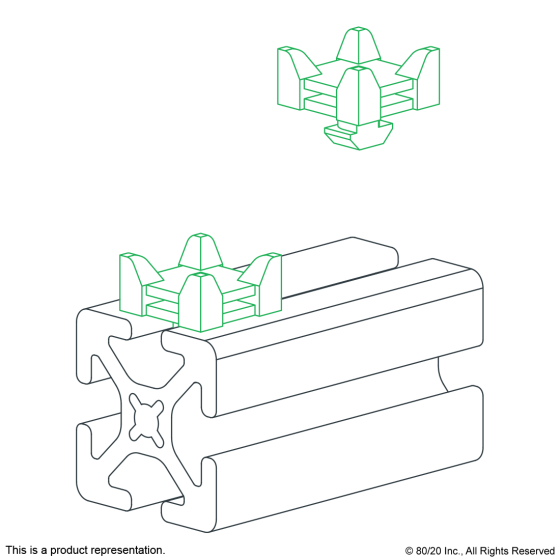

The cable tie mounting block is used to organize cables, wires, and tubes. It is a reusable option allows cable ties to be attached in two directions. The pad key allows it to easily drop into a T-slot channel even when ends are closed off. The cable tie mounting block twists into the T-slot to lock in place.

Series 10 Series, 25 Series
Material Nylon
Grade PA6 GF30
Finish Matte
Color Black
Process Molded

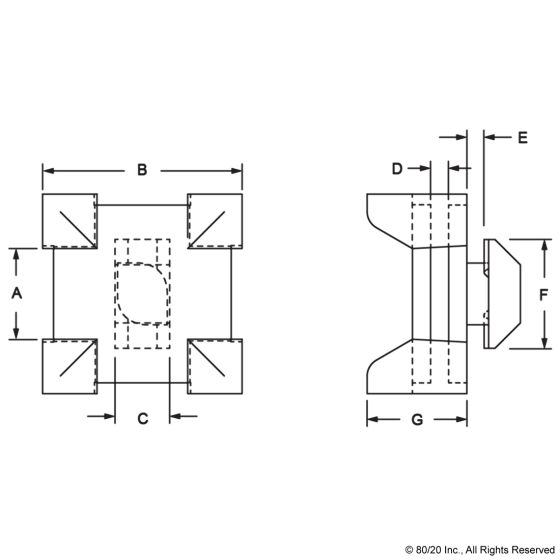

A 10.00mm
B 22.00mm
C 6.00mm
D 2.00mm
E 1.90mm
F 12.00mm
G 11.00mm
Weight 0.0080

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
