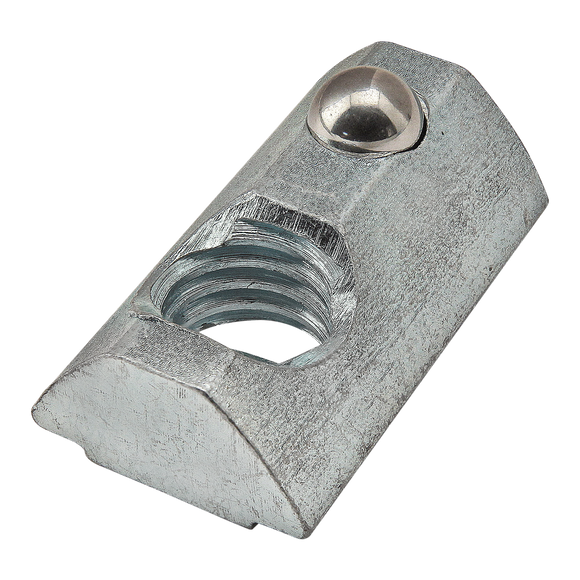

13034 - M8 Self-Aligning Roll-in T-Nut with Ball Spring

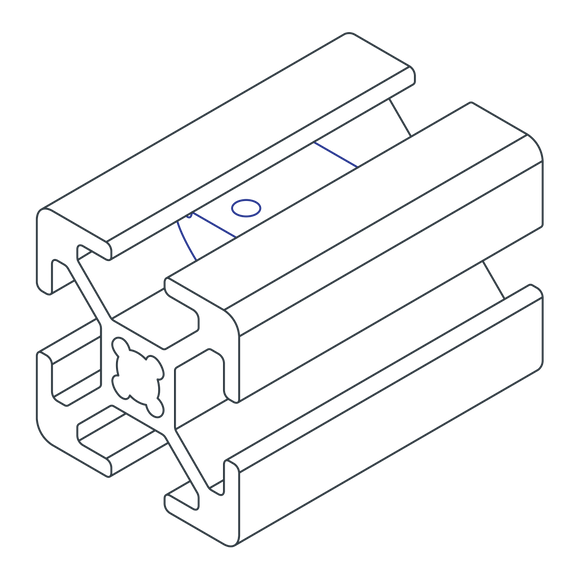

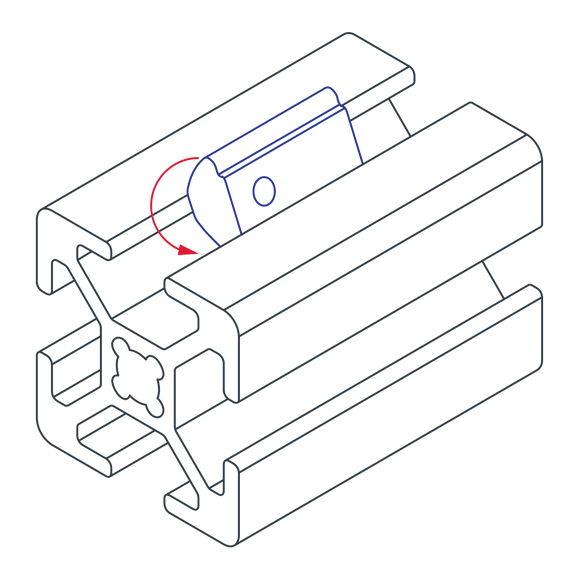

The self-aligning roll-in T-nut with ball spring is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot while the ball spring holds the fastener in place, even when the profile is in a vertical position. It is available with options in size, material, thread, and finish.
| Series | 15 Series, 40 Series |
| Material | Steel |
| Grade | 1045 |
| Finish | Zinc |
| Color | Bright |
| A | 6.70mm |
| B | 22.00mm |
| C | 13.50mm |
| D (Thread) | M8 X 1.25 |
| E | 8.90mm |
| F | 7.20mm |
| G | 7.80mm |
| H | 0.80mm |
| Weight | 0.0190 |
