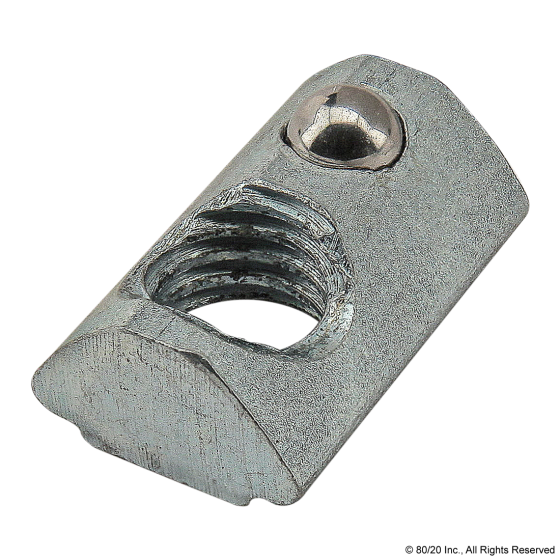

13084 - M5 Self-Aligning Roll-in T-Nut with Ball Spring

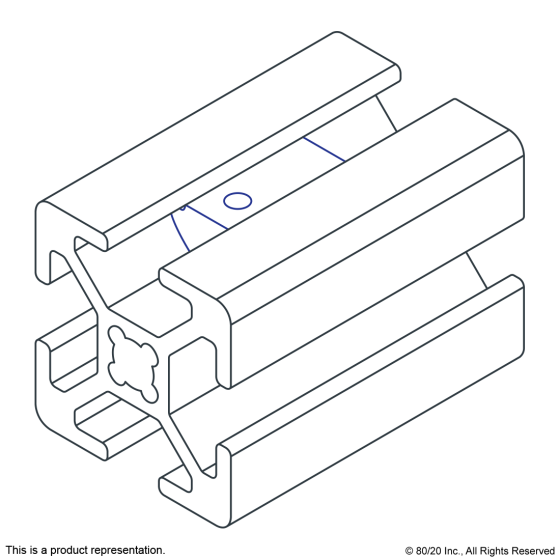

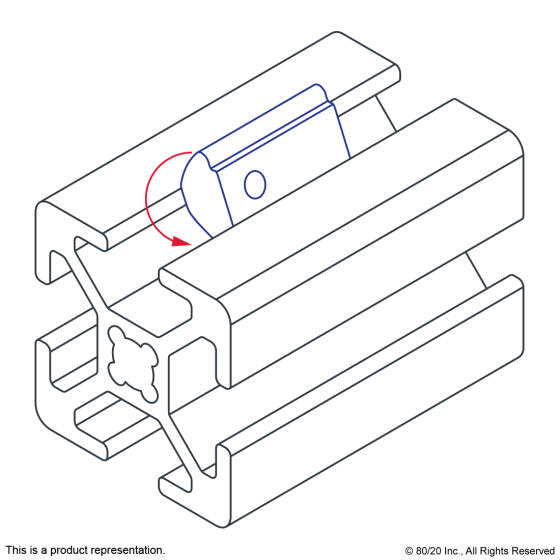

The self-aligning roll-in T-nut with ball spring is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot while the ball spring holds the fastener in place, even when the profile is in a vertical position. It is available with options in size, material, thread, and finish.
| Series | 20 Series |
| Material | Steel |
| Finish | Zinc |
| Grade | 1045 |
| Color | Bright |
| A | 3.80mm |
| B | 12.00mm |
| C | 7.70mm |
| D (Thread) |
M5 X 0.8 |
| E | 5.50mm |
| F | 4.50mm |
| G | 5.00mm |
| H | 0.60mm |
| Weight | 0.0040 |
