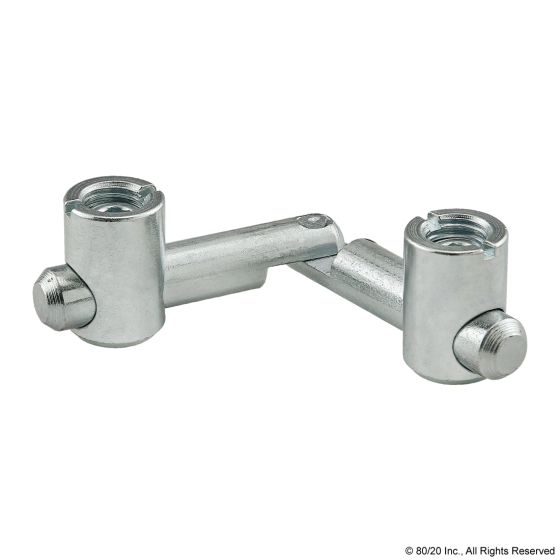

13193 - Miter Connector

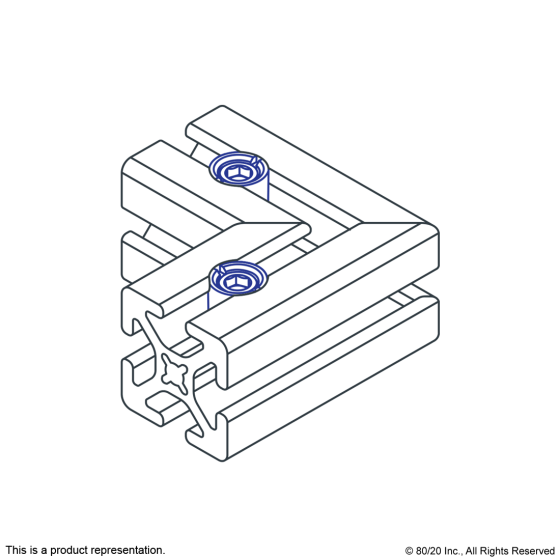

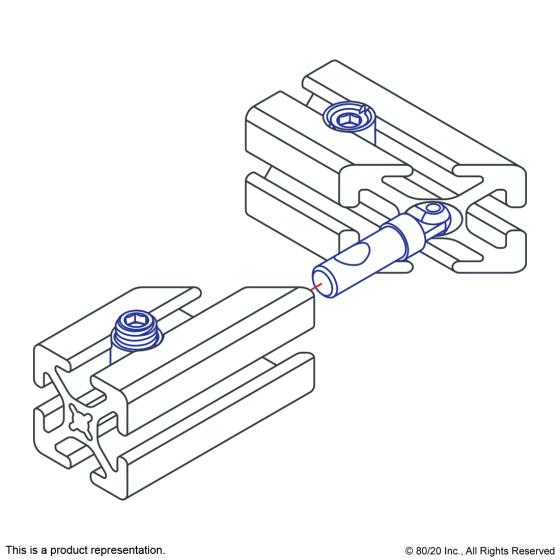

The miter connector creates strong, internal connections ranging from 90 degrees to 180 degrees. A miter connection reduces rotation between the profiles. This connection requires that both profiles have a miter cut machining service as well as counterbores in both the mounting and mating profiles.
| Series | 15 Series, 40 Series, 45 Series |
| Material | Steel |
| Finish | Zinc |
| Color | Bright |

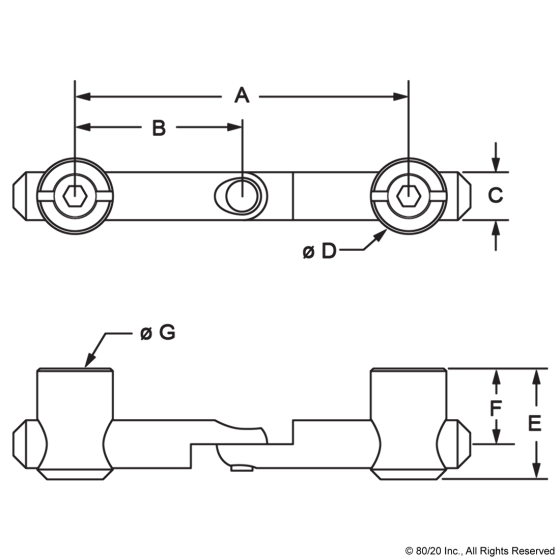

| A | 66.00mm (2.598") |
| B | 33.00mm (1.299" ) |
| C | 9.50mm (.374") |
| D | 15.00mm (.591") |
| E | 22.00mm (.866") |
| F | 15.00mm (.591") |
| G | M10 x 12 |
| Weight | 0.175000 |
