14011 - 10 & 25 Series 2 Hole - Pivot Joint

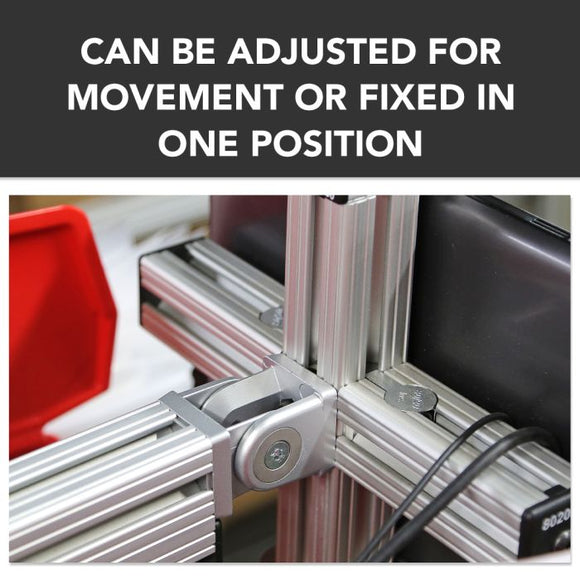

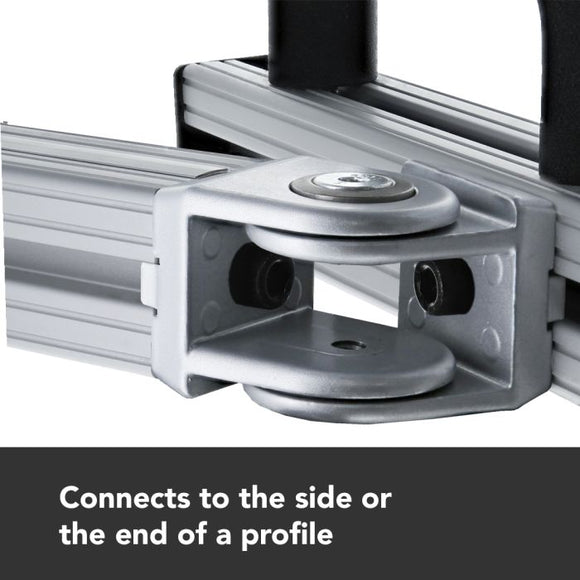

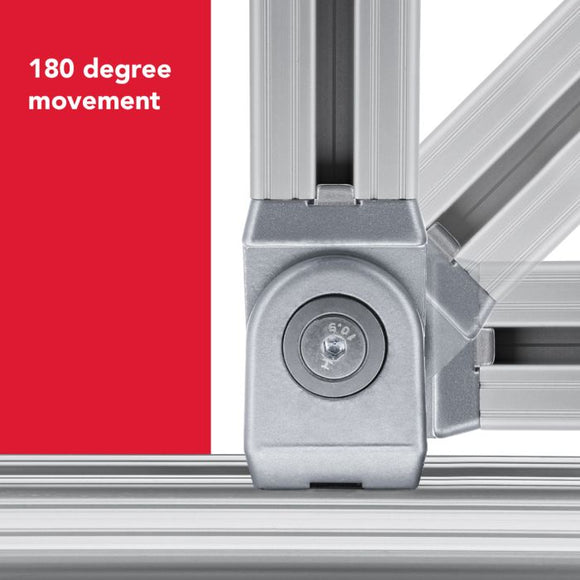

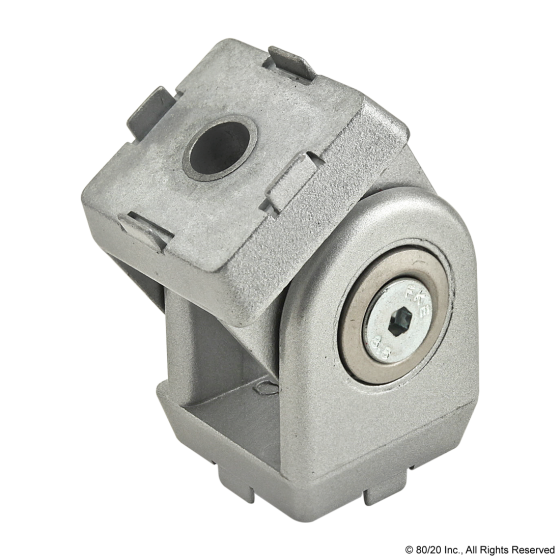

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector can either mount to the end of a profile, which would require an end tap, or the slot tabs can be removed for mounting directly to the T-slot without any required machining services. The screws on the arms can be adjusted for movement or fixed in one position
NOTE: DOES NOT INCLUDE HARDWARE

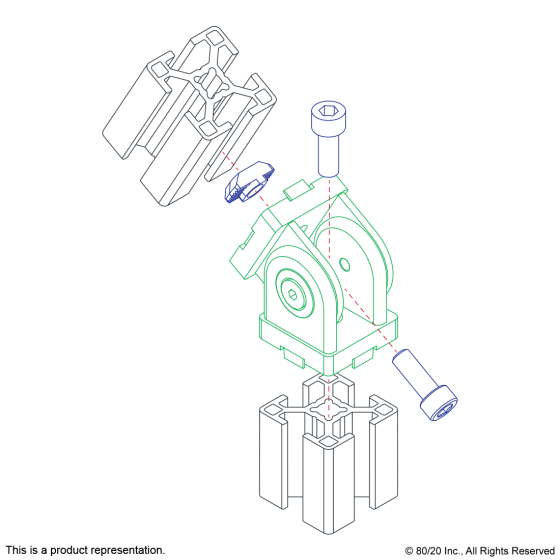

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3062 | 2 |
Mount to T-Slot - 1/4-20 X .500" SHCS |
| 3382 | 2 |
Mount to T-Slot - 1/4-20 Slide-In Economy T-Nut - Centered Thread |
| 3064 | 2 | Mount to Profile End - 1/4-20 X .750" SHCS |
| Series | 10 Series, 25 Series |
| Material | Zinc |
| Process | Die Cast |
| Finish | Powder Coat |

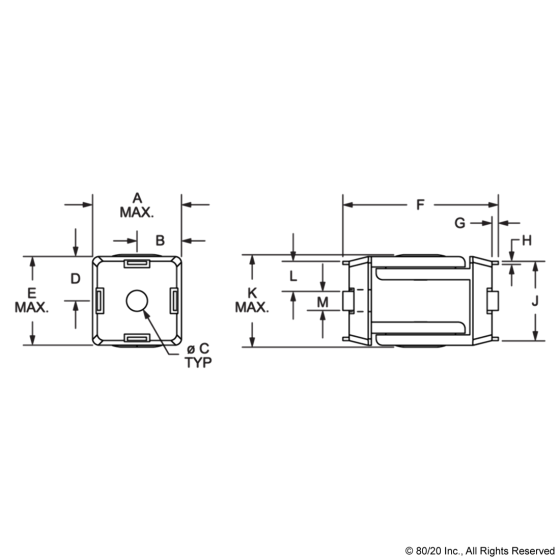

| A | 28.00mm |
| B | 14.00mm |
| C | 6.60mm |
| D | 14.00mm |
| E | 28.00mm |
| F | 49.00mm |
| G | 2.00mm |
| H | 1.00mm |
| J | 25.00mm |
| K | 29.20mm |
| L | 9.50mm |
| M | 6.00mm |
| Weight | 0.270000 |
