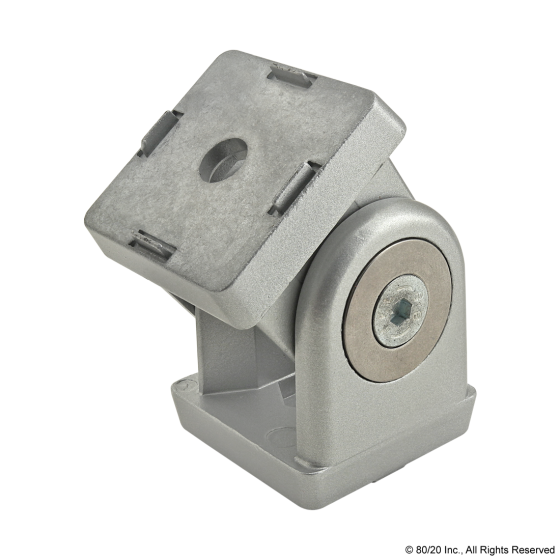

14017- 15 Series 2 Hole - Pivot Joint

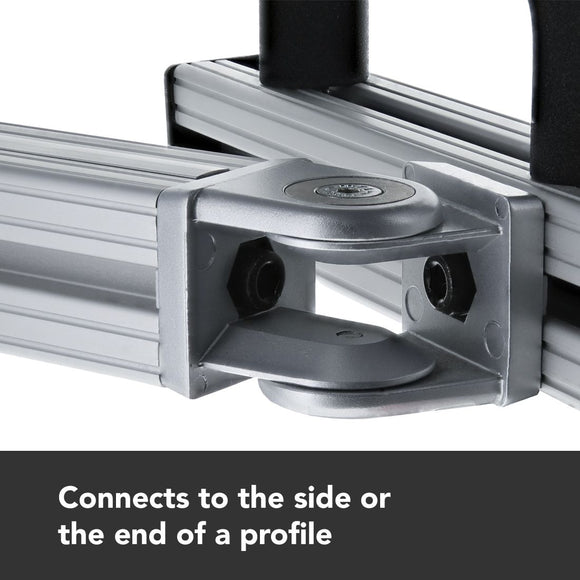

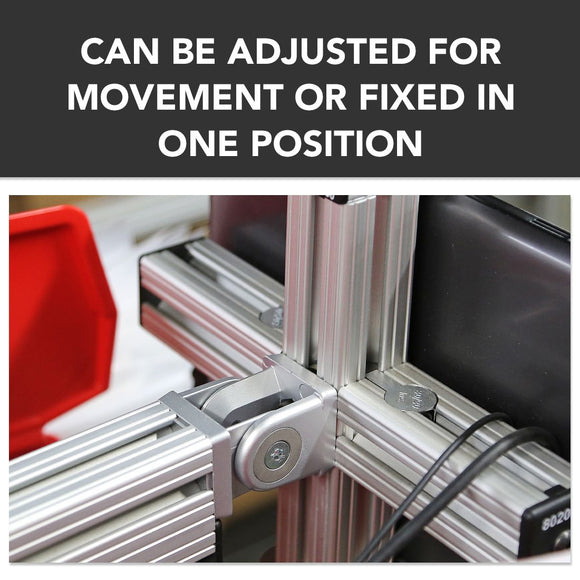

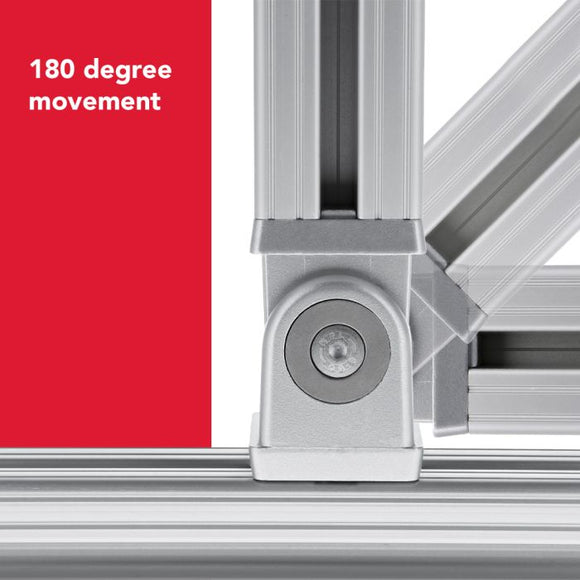

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector mounts to the end of a profile, which requires an end tap. The screws on the arms can be adjusted for movement or fixed in one position. Use pliers to take off unwanted tabs.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

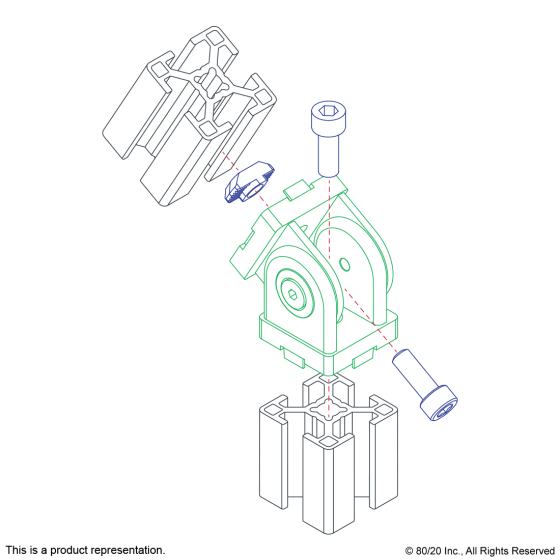

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3110 | 2 |
Mount to T-Slot - 5/16-18 X .625" SHCS |
| 13040 | 2 |
Mount to T-Slot - Roll-In T-Slot Nut Stepped 5/16-18 |
| 3122 | 2 |
Mount to Profile End - 5/16-18 X 1.000" SHCS |
| Series | 15 Series |
| Material | Zinc |
| Process | Die Cast |
| Finish | Powder Coat |
| A | 1.570" |
| B | .790" |
| C | .340" |
| D | .790" |
| E | 1.570" |
| F | 2.520" |
| G | .079" |
| H | .039" |
| J | 1.378" |
| K | 1.575" |
| L | .531" |
| M | .315" |
| Weight | 0.641000 |
