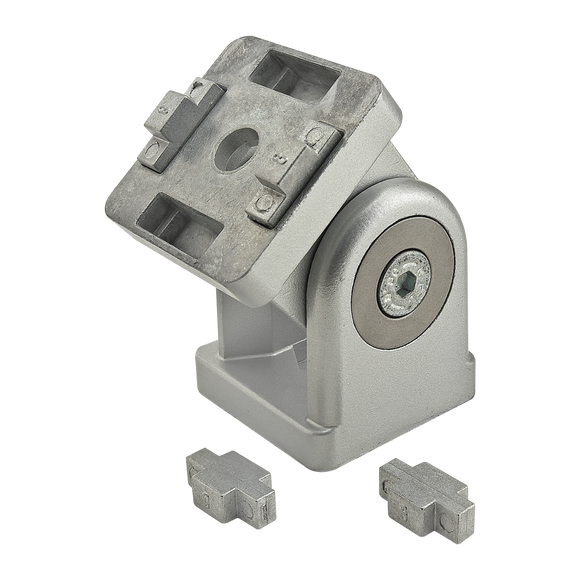

14018 - 40 Series 2 Hole - Pivot Joint
The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector can either mount to the end of a profile, which would require an end tap, or the insert tabs can be removed for mounting directly to the T-slot without any required machining services. The insert tabs include both an M8 and M10 size. The screws on the arms can be adjusted for movement or fixed in one position.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
75-3625 | 2 | Bolt Assembly: M8 x 16.00mm Black SHCS with Slide-In T-Nut - Bright Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
|
11-8525 | 2 |
M8 x 25.00mm Socket Head Cap Screw (SHCS) |
| ESD Safe | No |
| Series | 40 Series |
| Material | Zinc |
| Process | Die Cast |
| Finish | Powder Coat |
| A | 40.00mm |
| B | 20.00mm |
| C | 8.50mm |
| D | 20.00mm |
| E | 40.00mm |
| F | 63.20mm |
| G | 1.60mm |
| H | 6.20mm |
| J | 37.00mm |
| K | n/a |
| L | 15.00mm/16.00mm |
| M | 8.00mm/10.00mm |
| Weight | 0.595000 |
For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.
