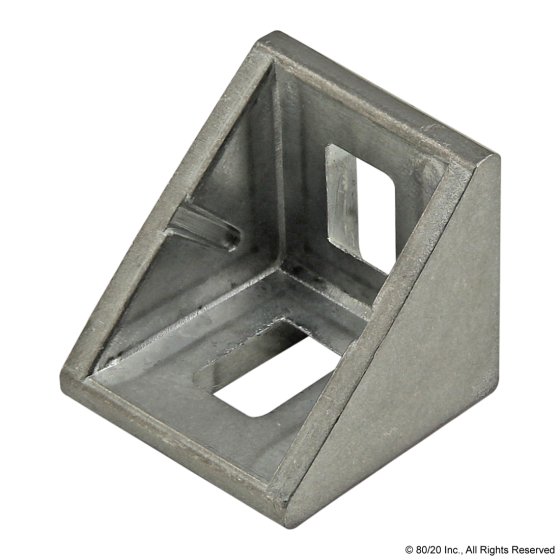

14059 10, 20, & 25 Series 2 Hole - 18mm Slotted Inside Corner Bracket with Dual Support
The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
NOTE: DOES NOT INCLUDE HARDWARE

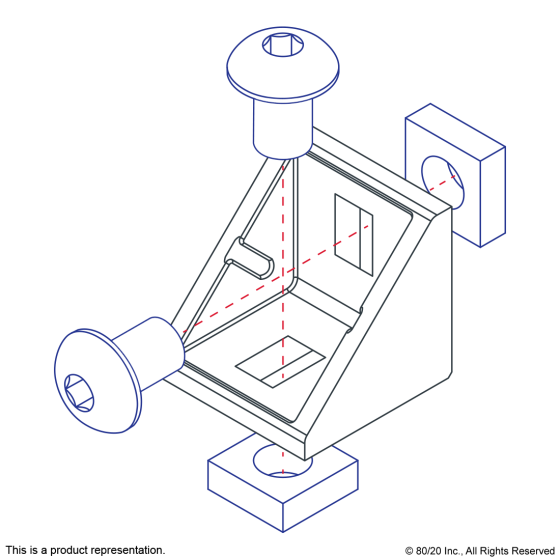

Suggested Hardware:
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
3426 | 2 | Bolt Assembly: 10-32 x .375" Black BHSCS and Standard Slide-In T-Nut - Black Zinc |
 |
75-3581 | 2 | Bolt Assembly: M5 x 8.00mm Black BHSCS with Slide-In Economy T-Nut Block - Bright Zinc |
 |
75-3401 | 2 | Bolt Assembly: M5 x 10.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
| Series | 10 Series, 20 Series, 25 Series |
| Material | Aluminum |
| Finish | Natural |
| Slot Tab | No |

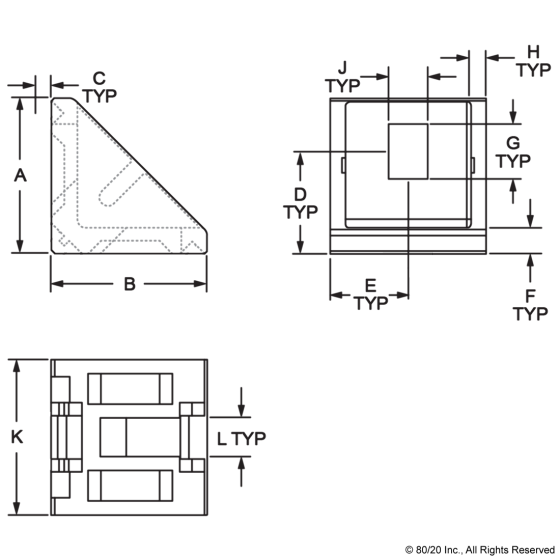

| A | 18.00mm |
| B | 18.00mm |
| C | n/a |
| D | 10.50mm |
| E | 9.00mm |
| F | 3.00mm |
| G | 7.00mm |
| H | 2.00mm |
| J | 5.30mm |
| K | 18.00mm |
| L | n/a |
| Weight | 0.009400 |
