14161 - 1/4-20 Economy Drop-in T-Nut

SKU: 14161

$2.37 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

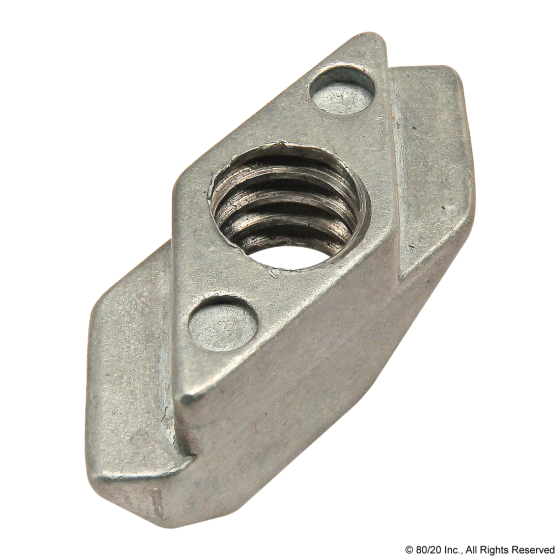

14161 - 1/4-20 Economy Drop-in T-Nut

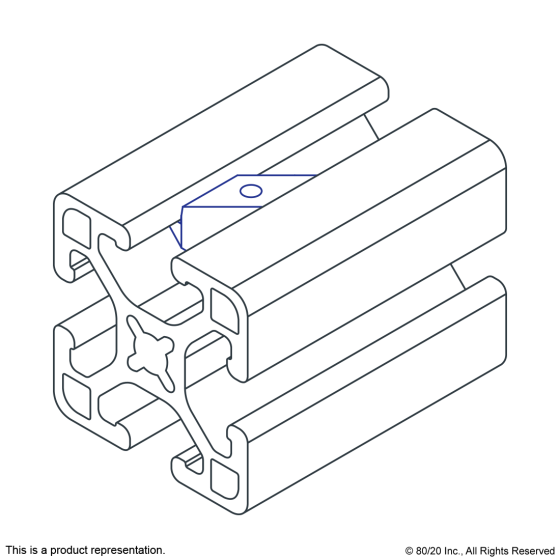

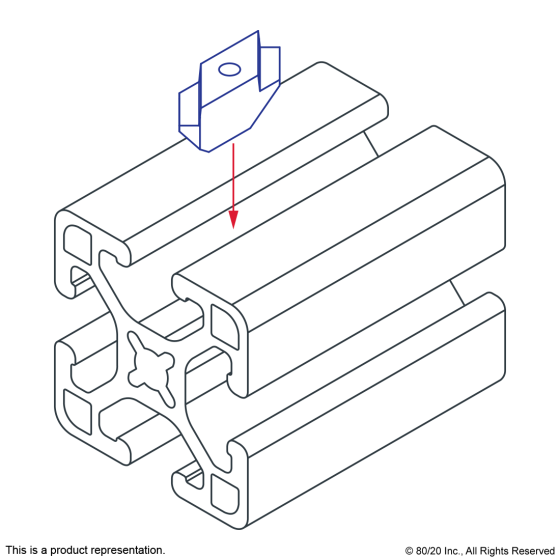

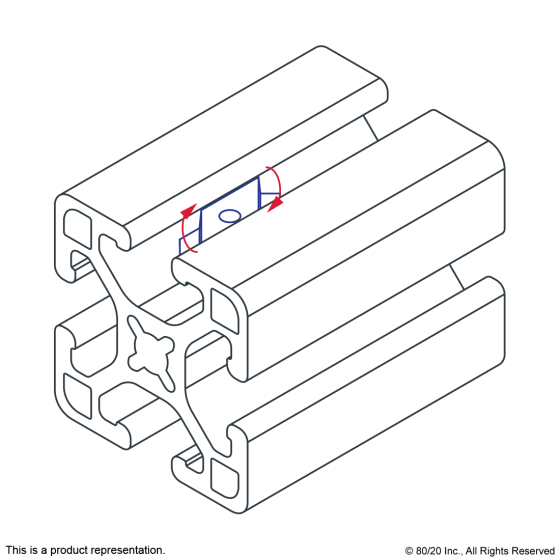

The economy drop-in T-nut is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. It is a cost-effective fastener that provides infinite positioning along the profile T-slot and is available in an option of threads.

Series 15 Series, 40 Series
Material Zinc
Grade Die-Cast
Finish Zinc
Color Bright

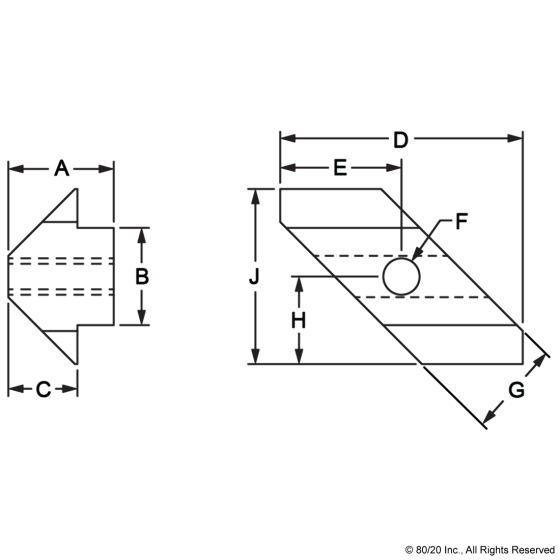

A 8.70mm
B 8.00mm
C 5.70mm
D 20.00mm
E 10.00mm
F (Thread) 1/4-20
G 7.80mm
H 10.00mm
J 20.00mm
Weight 0.009000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
