14177 - 15 Series 3 Way - Connector Light Squared Corner

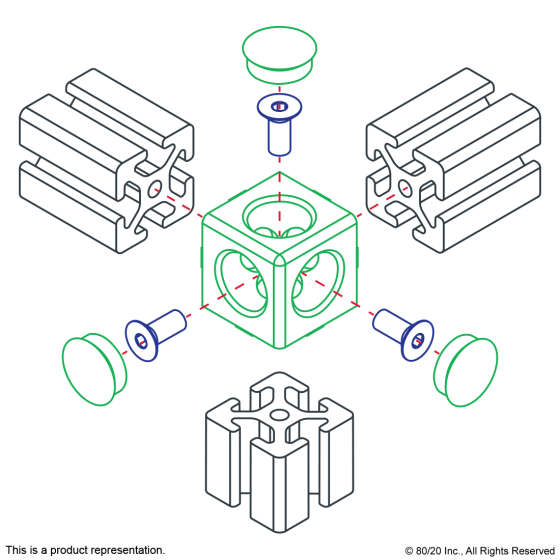

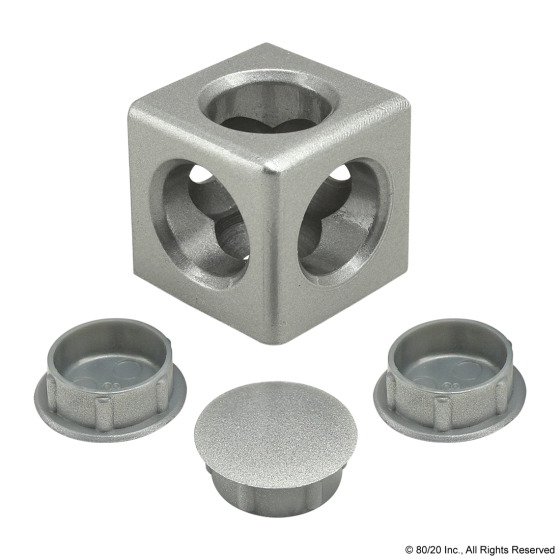

The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles.
NOTE: DOES NOT INCLUDE HARDWARE
Suggested Hardware:
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3118 | 3 |
5/16-18 x 1.000" Button Head Socket Cap Screw (BHSC |
| Series | 15 Series |
| Material | Aluminum |
| Finish | Lacquered |
| Cap | Included |

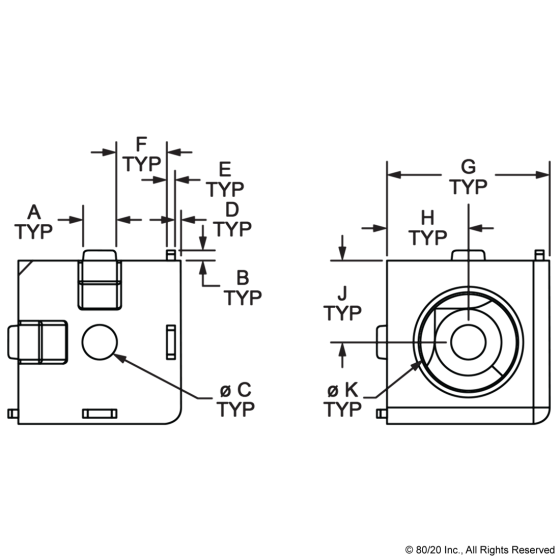

| A | .315" |
| B | .118" |
| C | .335" |
| D | .059" |
| E | .098" |
| F | .439" |
| G | 1.500" |
| H | .750" |
| J | .750" |
| K | .705" |
| Weight | 0.1910 |
