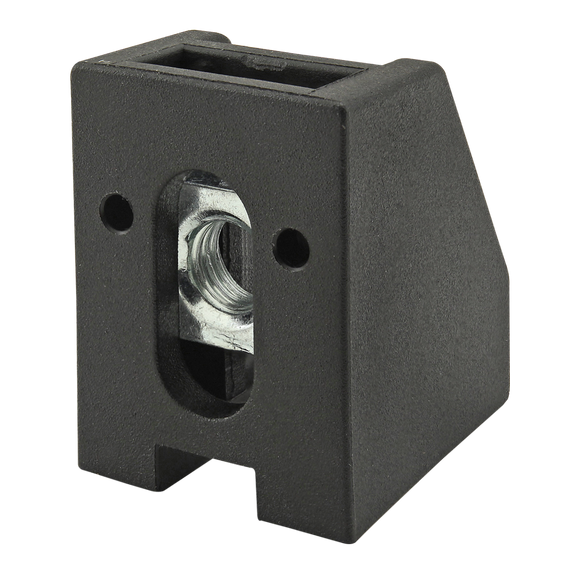

14192 - 15, 30, 40, & 45 Series Lite Panel Mount Block

SKU: 14192

$5.68 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***

The lite panel mount block is made of nylon and can be used to mount a panel flush with a profile edge or on the profile surface. The lite panel mount block is a cost-effective option that increases stability of the mounted panel while also reducing vibration. The lite panel mount block is easy to use and simplifies the process of adding or removing plastic panels. The suggested bolt assembly to mount the block to the T-slot can be found on the "Suggested Hardware" tab. The hardware to mount the panel to the block should be based on the panel type and thickness. Note: A spacer block may be needed for certain extrusion and panel configurations.

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
