14200 - 10 & 25 Series T-Matic Connector

SKU: 14200

$7.62 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

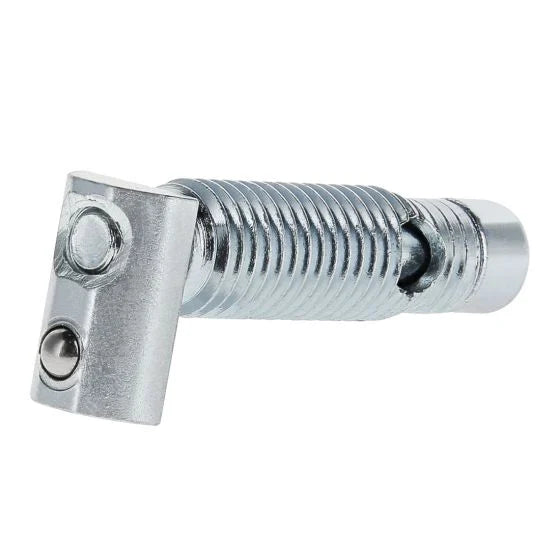

14200 - 10 & 25 Series T-Matic Connector

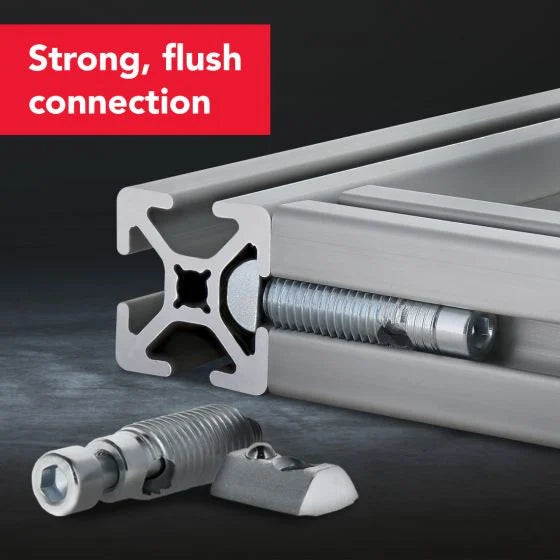

  • Internal connector that requires no machining
  • Compatible with 10 and 25 Series profiles
  • Infinite positioning along the T-Slot profile

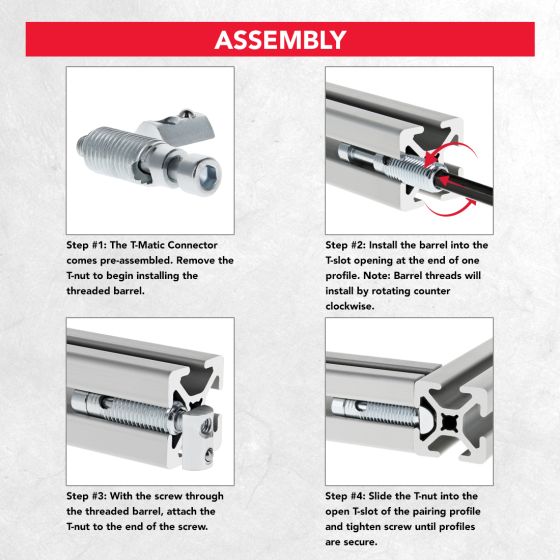

  • Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
  • Holding force exceeding 100 lbs and torsional strength over 130 in-lbs.

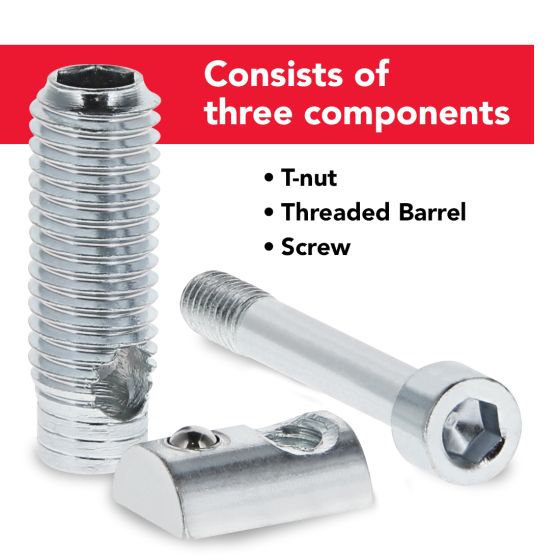

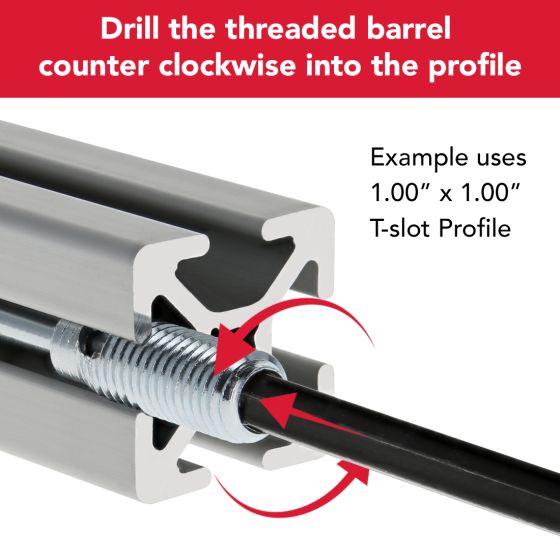

  • Left-handed barrel thread and self-retained screw to support ease of installation.

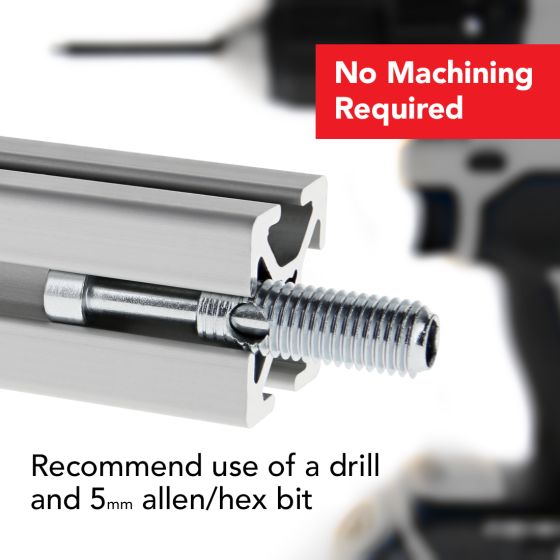

  • Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).

80/20: 10 & 25 Series T-Matic Connector (14200) - YouTube

Weight 0.033100
Series 10 Series, 25 Series
Material Steel
Color Silver

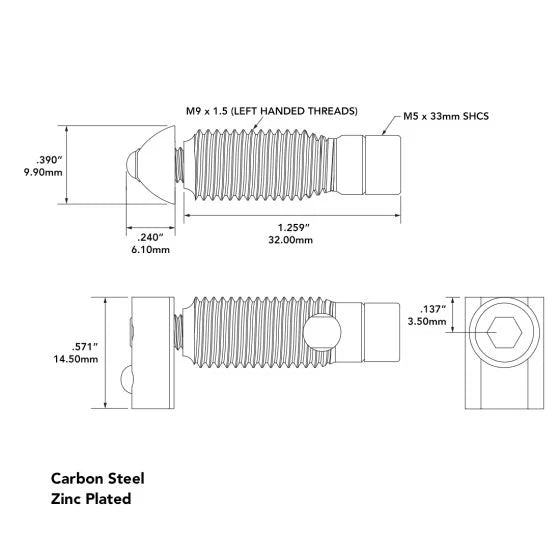

A 1.259" (32.00mm)
B 0.240" (6.10mm)
C N/A
D 0.390" (9.90mm)
E M9 x 1.5
F M5 x 33mm SHCS
G 0.571" (14.50mm)
H 0.137" (3.50mm)

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
