20-4113 - 20 Series 4 Hole - Wide Inside Corner Bracket

SKU: 20-4113

$9.74 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

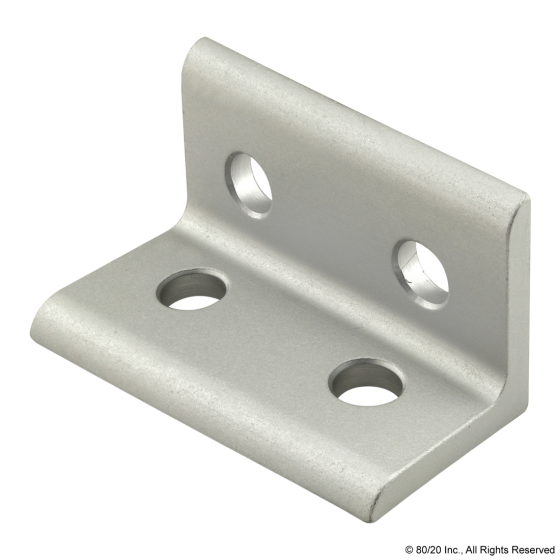

20-4113 - 20 Series 4 Hole - Wide Inside Corner Bracket

The 4 hole - wide inside corner bracket is an external fastening method that creates a 90 degree connection. There are two adjacent holes on each side of the bracket. This fastener requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. It is a fastening method that can be re-positioned and reused.

USA Made by 80/20 Inc

NOTE: DOES NOT COME WITH HARDWARE

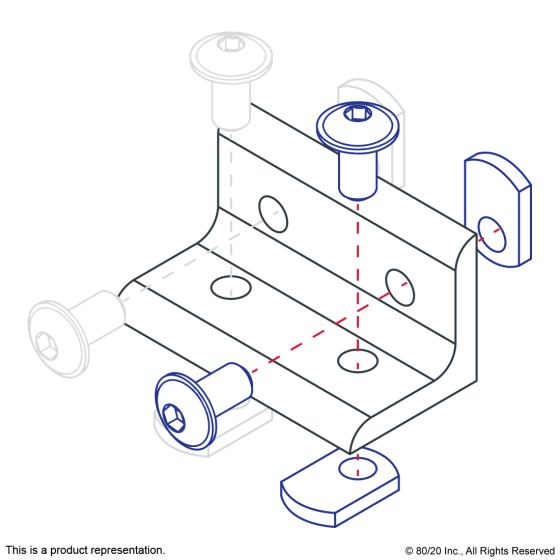

Suggested Hardware:

Part Number Qty Description
75-3581 4

Bolt Assembly: M5 x 8.00mm Black BHSCS with Slide-In Economy T-Nut Block - Bright Zinc



ries 20 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

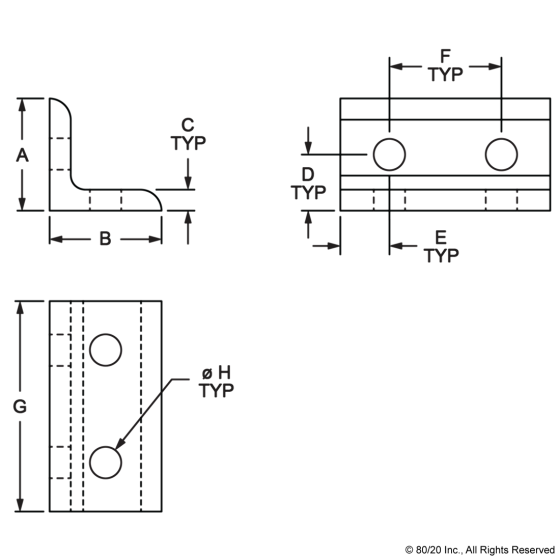

A 20.00mm
B 20.00mm
C 3.00mm
D 10.00mm
E 9.00mm
F 20.00mm
G 38.00mm
H 5.56mm
Weight 0.023000


Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
