2062 - 10 Series Plastic Door Handle

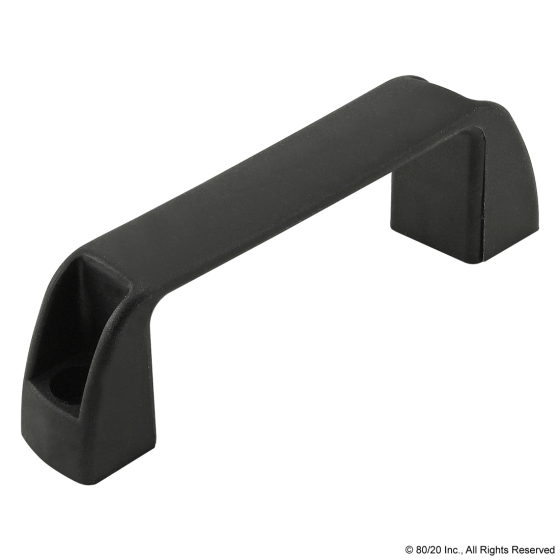

The plastic door handle is made of light yet durable high-strength glass-filled nylon. It is corrosion-resistant, lending it to both indoor and outdoor applications. The plastic door handle is designed to mount directly to a T-slot profile or can also be used with a plastic panel.
NOTE: Does not include hardware
Suggested Hardware:

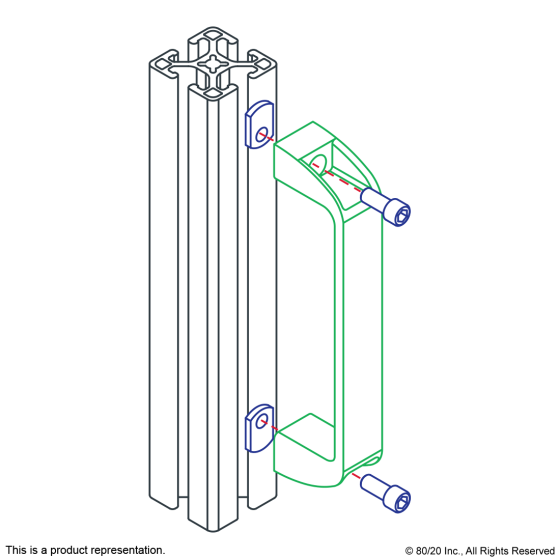

Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 10 | 3491 | 2 | Bolt Assembly: 1/4-20 x .500" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 10 |
3315 | 2 |
Bolt Assembly: 1/4-20 x .875" Black SHCS with Washer and Hex Nut - Black Zinc |
|
Series |
10 Series |
| Material | Glass-Filled Nylon |
| Finish | Textured |
| Color | Black |
| Process | Molded |
| A | 3.681" |
| B | .827" |
| C | 1/4 |
| D | 1.417" |
| E | 2.953" |
| F | 4.409" |
| Weight | 0.0480 |
