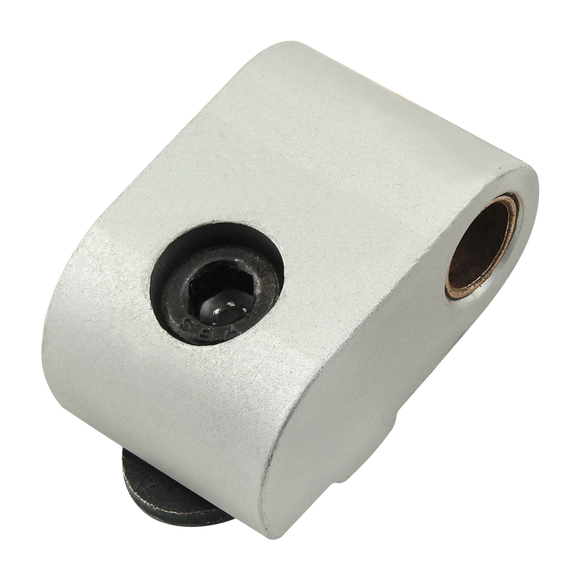

2077 - 10 Series Standard Lift-Off Hinge - Mating Hub

SKU: 2077

$16.55 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

The standard lift-off hinge mating hub is made of 6063-T6 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063 (1.60mm).

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
