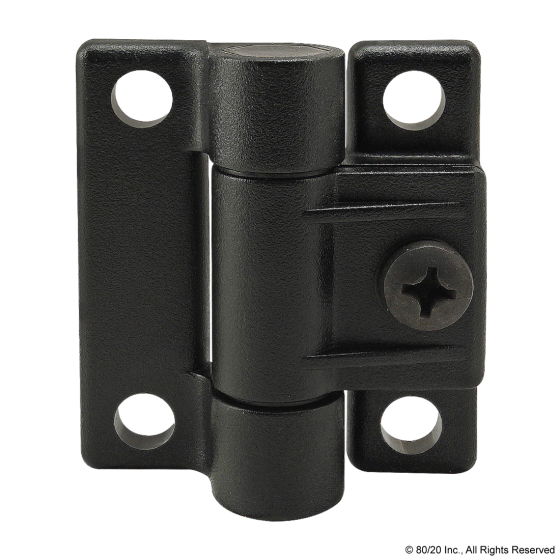

2080 - 15 Series 4 Hole - Adjustable Tension Panel Hinge
The 4 hole - adjustable tension panel hinge is comprised of black acetal with clear polycarbonate hinge pins. It is a durable and economical option and the adjustable pins have the ability to change the pivot tension when opening or closing an access point. The 4 hole - adjustable tension panel hinge mounts plastic panels and lightweight doors to T-slots. Important: This hinge is not suitable for connecting multiple T-slot profiles.
NOTE: DOES NOT INCLUDE HARDWARE

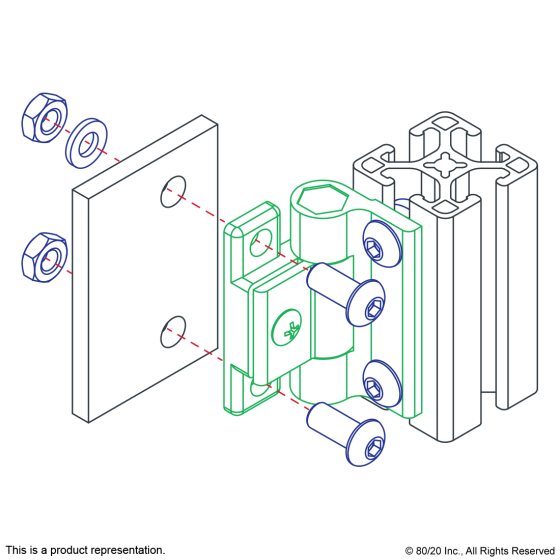

Suggested Hardware:
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
| 15 |
3365 | 2 | Bolt Assembly: 5/16-18 x .625" Black BHSCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc | |
| 15 |
3342 | 2 | Bolt Assembly: 5/16-18 x .750" Black BHSCS with Washer and Hex Nut - Black Zinc |
| Series | 15 Series |
| Material | Engineered Polymer |
| Process | Injection Molded |
| Finish | Matte |
| Color | Black |

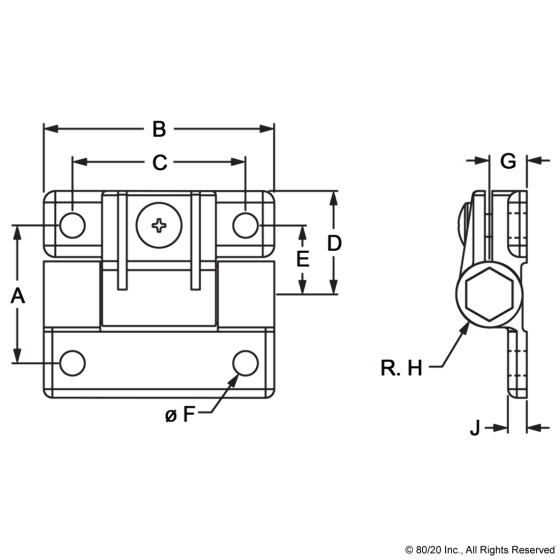

| A | 1.500" |
| B | 2.500" |
| C | 1.875" |
| D | 1.125" |
| E | .750" |
| F | .266" |
| G | .406" |
| H | .360" |
| J | .203" |
| Weight | 0.0940 |
