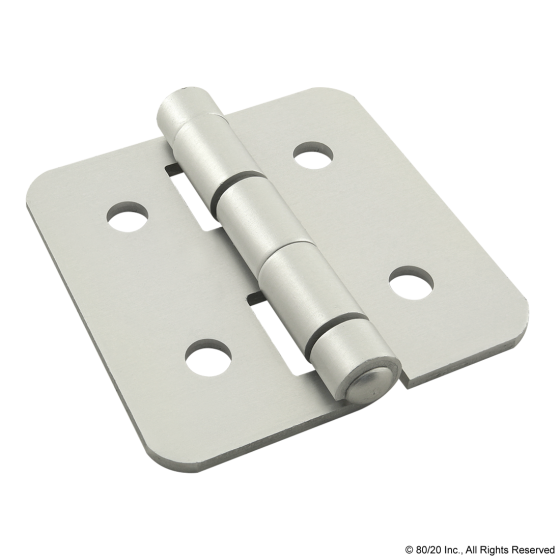

2085 - 15 Series Aluminum Hinge
The 4 hole - aluminum hinge is commonly used to mount lighter weight doors or two profiles. It is a cost-effective option that is corrosion-resistant, making it useful for outdoor applications where hinges may rust or corrode. There are options available that can be used as a transition from 10 to 15 series or 25 to 40 series profiles. Additional Information: The gap distance between profiles for 10 series is .062â€, 15 series is .120", 25 series is 1.97mm, 40 series is 1.15mm and for series transitions is .125" (2.42mm).
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

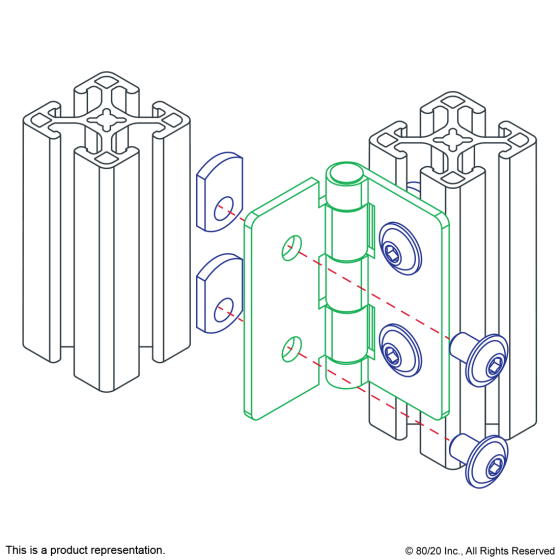

Suggested Hardware:
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3319 | 4 | Bolt Assembly: 5/16-18 x .500" Black FBHSCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
| Series | 15 Series, Ready Tube |
| Material | Aluminum |
| Leaf Grade | 5052-H32/34 |
| Pin Grade | 6061-T6 |
| Process | Die Stamping |
| Finish | Anodize |
| Color | Clear |
| Max Load | 70 lb |
| A | 3.000" |
| B | .686" |
| C | .750" |
| D | 3.000" |
| E | .328" |
| F | 1.500" |
| G | 1.500" |
| H | .328" |
| J | .686" |
| K | .250" |
| L | .250" |
| M | .125" |
| Weight | 0.1350 |
