2091 - 15 Series 4 Hole - Detent Hinge

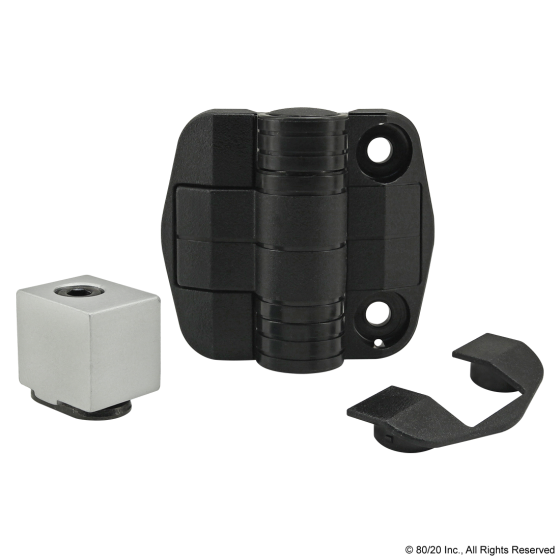

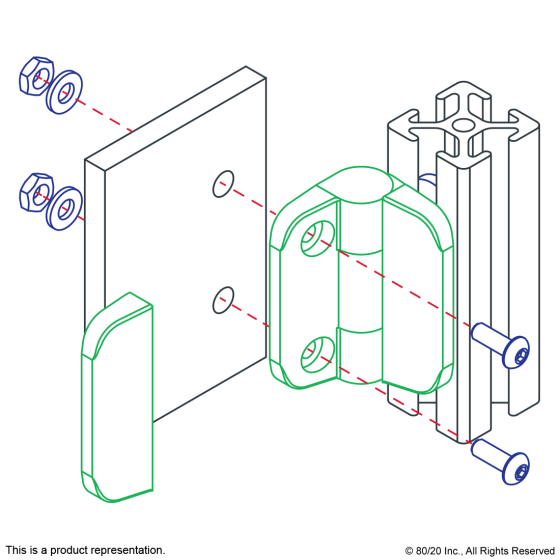

The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
Suggested Hardware: PN 3050 x4, PN 3382 x4
| Series | 15 Series |
| Material | Acetal with Stainless Steel Ball and Spring Detent |
| Process | Injection Molded |
| Color | Black |

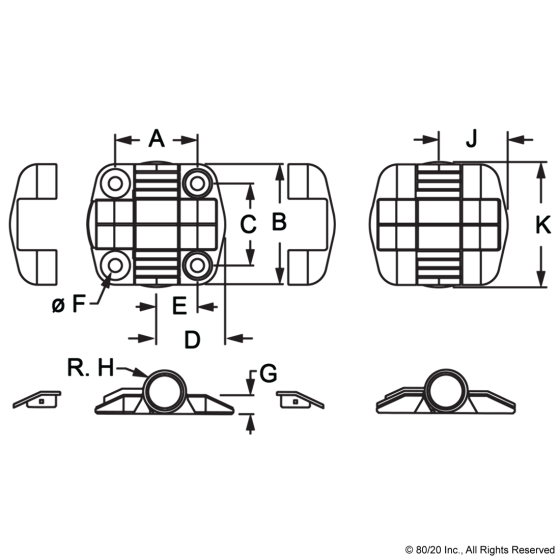

| A | 1.339" |
| B | 1.957" |
| C | 1.339" |
| D | 1.122" |
| E | .677" |
| F | .205" |
| G | .358" |
| H | .350" |
| J | 1.122" |
| K | 2.047" |
| Weight | 0.137000 |
