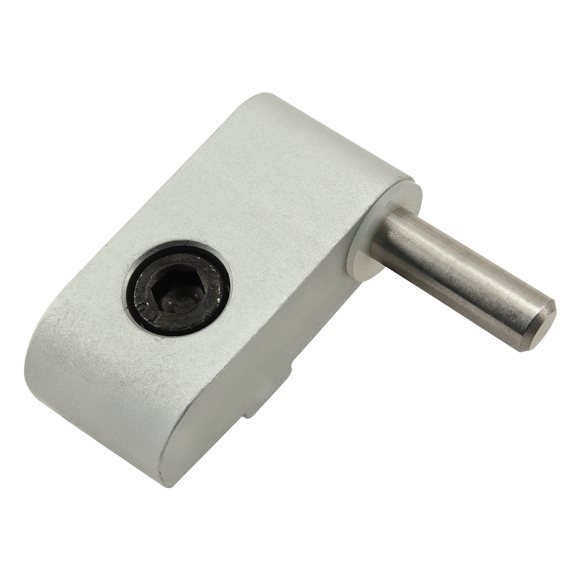

The standard lift-off hinge right hand with single long pin is made of 6063-T6 anodized aluminum. The heavy-duty stainless steel hinge pin provides a smooth, long-lasting, strong connection. The captivated nylon thrust washer eliminates metal-to-metal contact and won fall out. When the long pin is placed in the upper position it simplifies door assembly. Hinges with long pins are commonly used to create lift of hinge assemblies. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063 (1.60mm).

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.
