2107 - 10 & 15 Series 90 Degree Deadbolt Latch

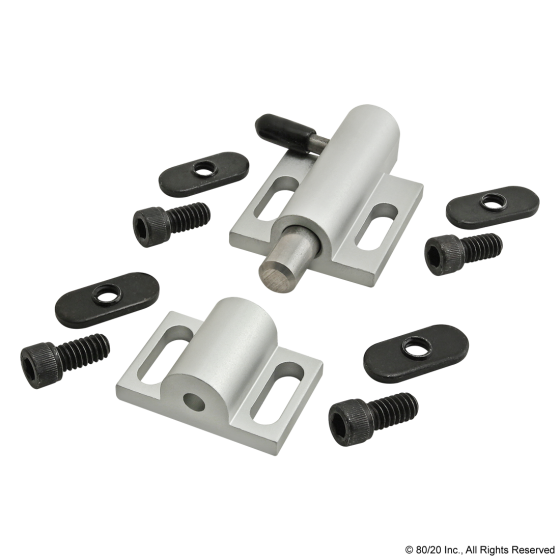

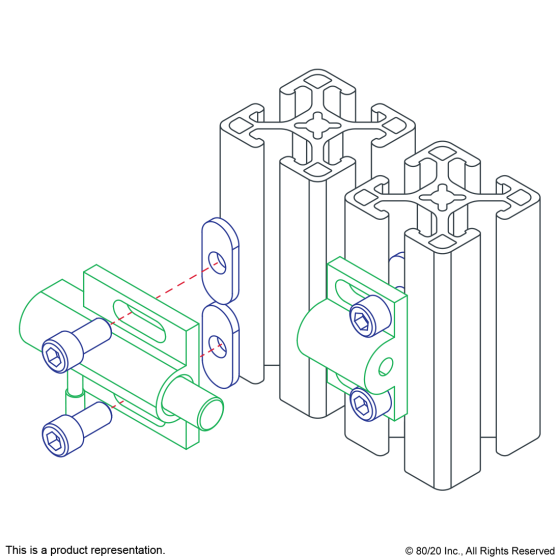

The 90 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. The pin handle is positioned at a 90 degree angle to prevent snagging. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |

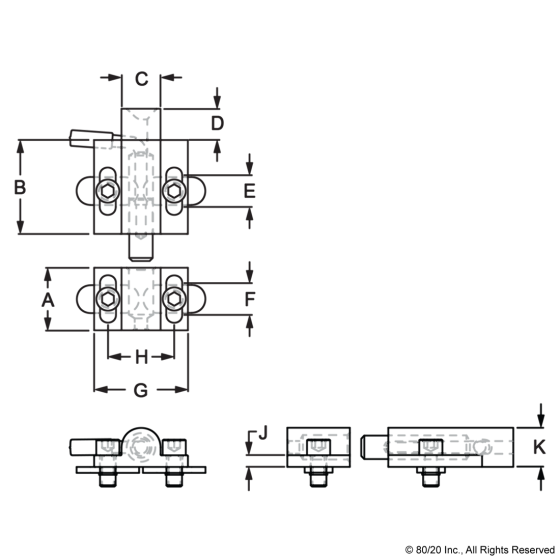

| A | 1.000" |
| B | 1.500" |
| C | .625" |
| D | .500" |
| E | .507" |
| F | .500" |
| G | 1.500" |
| H | 1.062" |
| J | .187" |
| K | .625" |
| Weight | 0.223000 |
