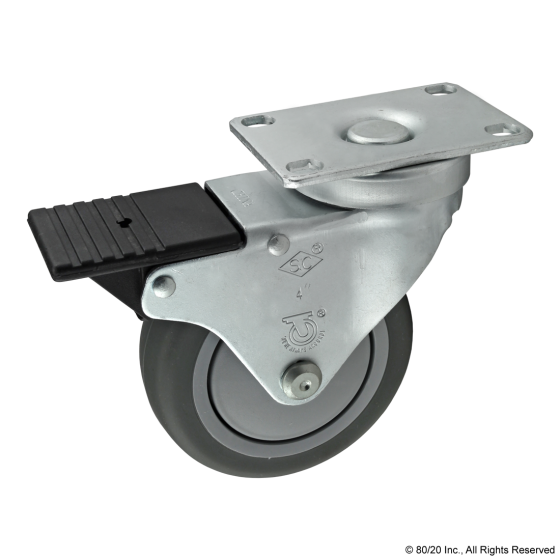

2321 - Flanged Mount Swivel Caster: 4"

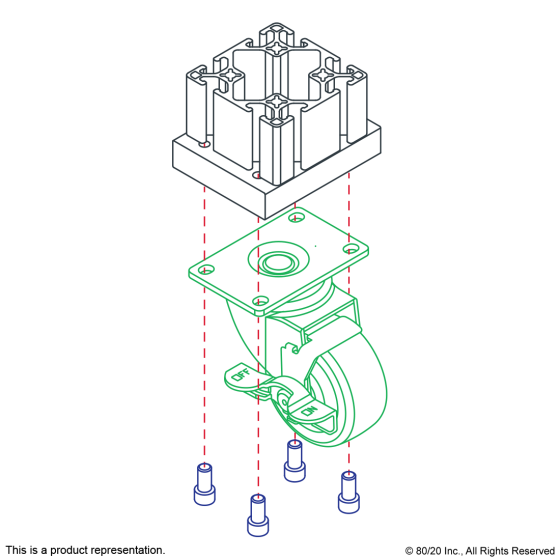

The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. There are options available with a side or front mount brake kit; the side brake locks only the wheel while the front brake locks both the wheel and the swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.
Made in USA by 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3110 | 4 |
5/16-18 x .625" Socket Head Cap Screw |
| Series | Fractional |
| Material | Steel / Soft Rubber |
| Finish | Zinc |
| Color | Black |

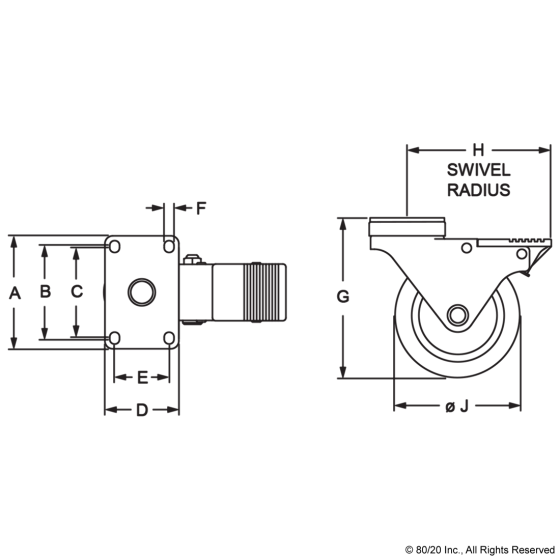

| A | 3.625" |
| B | 3.000" |
| C | 2.875" |
| D | 2.375" |
| E | 1.750" |
| F | 0.328" |
| G | 5.125" |
| H | 4.625" |
| J | 4.000" |
| Load Height | 5.125" |
| Load Capacity | 255.00 lb |
| Weight | 1.9390 |
