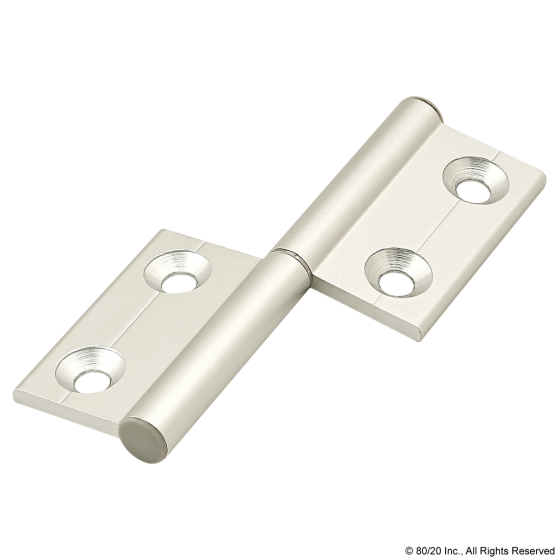

2325 - 10 & 25 Series 4 Hole - Concealed Hinge

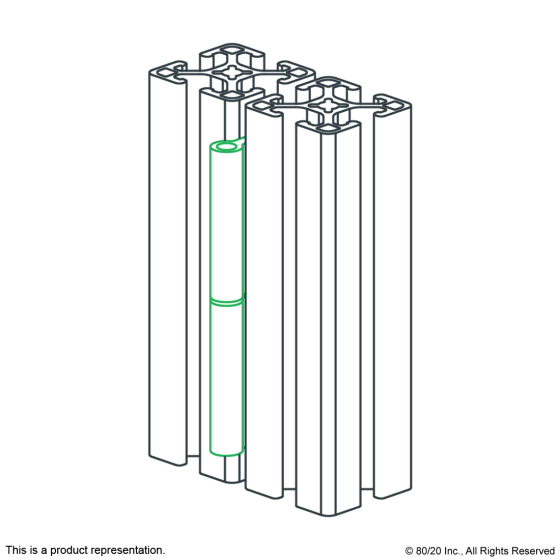

The 4 hole - concealed hinge allows you to design doors with hidden hinges when the door is closed. The hinge mounts to the inside of the frame, which makes enclosures more secure; they are not able to be dismantled when the door is shut.

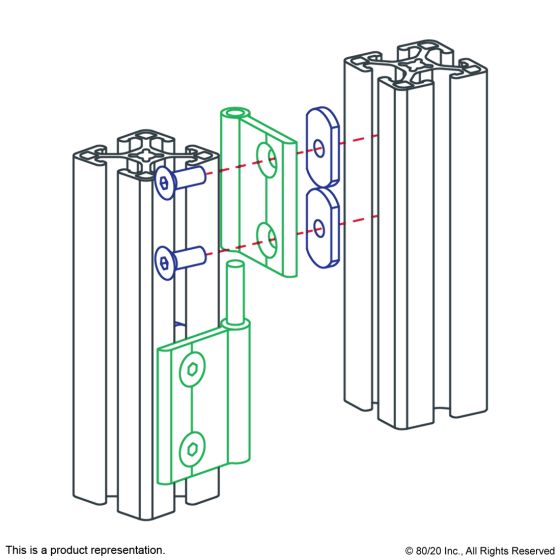

Suggested Hardware:
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3400 |
4 |
1/4" x 1/2" Flat Head Socket Cap Screw (FHSCS) |
|
|
3382 |
4 |
1/4-20 Slide-in Economy T-Nut - Centered Thread |
| Series | 10 Series, 25 Series |
| Material | Aluminum |
| Grade | 6060 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |

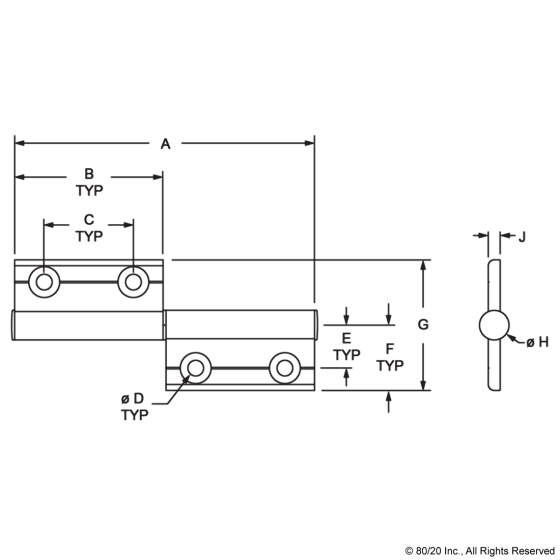

| A | 3.976" |
| B | 1.969" |
| C | 1.181" |
| D | .252" |
| E | .689" |
| F | 1.102' |
| G | 2.205" |
| H | .394" |
| J | .157" |
| Weight | 0.040000 |
