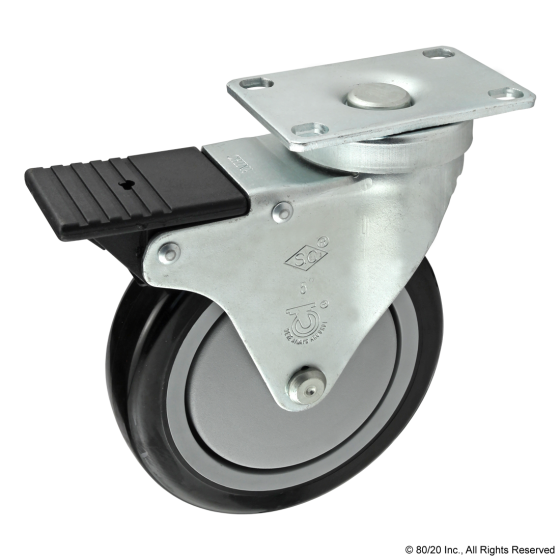

2334 - 5” Deluxe Flange Mount Swivel Caster W/ Brake

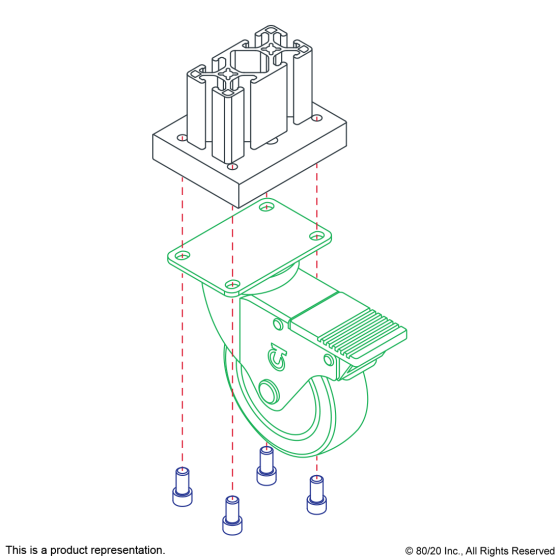

The deluxe flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The polyurethane wheels and hardened raceways enable a smooth motion while the swivel allows easy movement and pivot turns. The deluxe flange mount caster includes a brake. It is ideal for use in industrial settings such as mobile carts and material handling solutions.
| Series | Fractional |
| Material | Steel / Polyurethane |
| Finish | Zinc |
| Color | Black on Gray |
| A | 3.625" |
| B | 3.000" |
| C | 2.875" |
| D | 2.375" |
| E | 1.750" |
| F | .328" |
| G | .313" |
| H | 4.625" |
| J | 6.250" |
| K | 5.000" |
| Load Height | 6.250" |
| Load Capacity | 300.00 lb |
| Weight | 2.2290 |
