2390 - 15 Series Floor Mount Base Plate

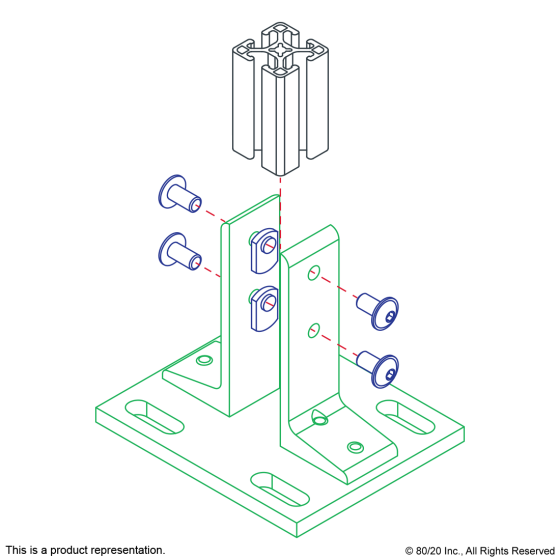

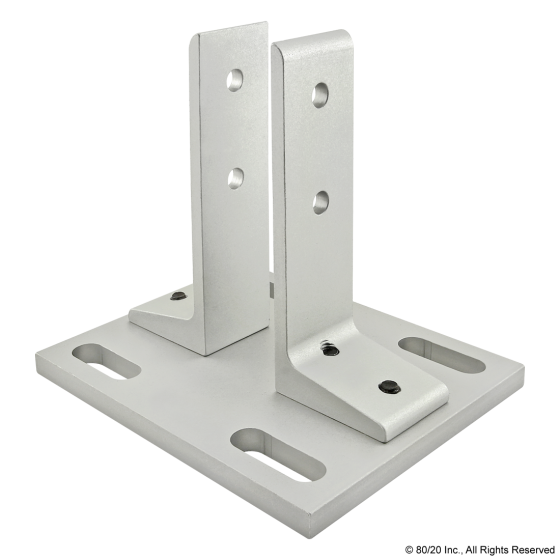

The floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It has two upright plates that support the sides of the profile and enable vertical adjustments. The mount also has anchoring slots to bolt the frame to the floor; the slots allow lateral adjustments.
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3325 | 4 To 8 |
Bolt Assembly: 5/16-18 x .750" Black Slide-In Flanged Economy T-Slot Stud with Washer and Hex Nut - Black Zinc |
|
|
3320 | 4 To 8 |
Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| A | 3.750" |
| B | .625" |
| C | 6.000" |
| D | 4.750" |
| E | 2.750" |
| F | 1.520" |
| G | .265" |
| H | .250" |
| J | 1.000" |
| K | .750" |
| L | 1.500" |
| M | 2.750" |
| N | .375" |
| P | 5.000" |
| Q | .328" |
| R | 1.500" |
| S | .750" |
| T | n/a |
| Weight | 1.584000 |
