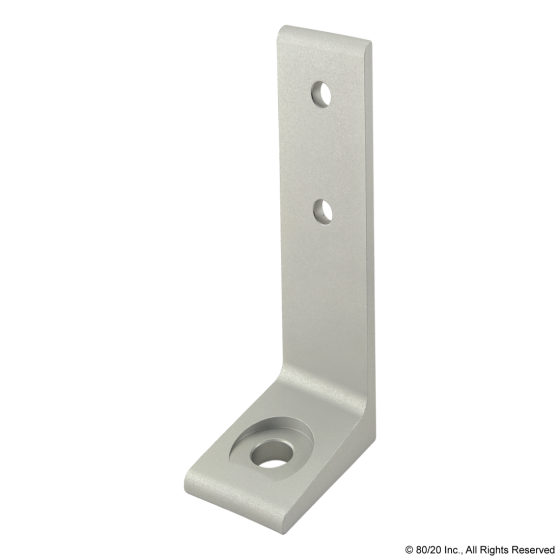

2415 - 15 Series 1.5" Economy Floor Mount Base Plate

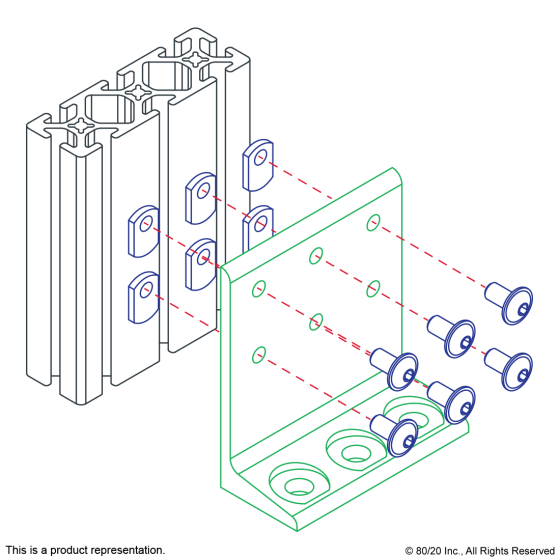

The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
Made in USA by 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3320 | 2 |
Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 2.250" |
| B | .750" |
| C | 1.500" |
| D | .750" |
| E | n/a |
| F | .328" |
| G | 1.312" |
| H | .750" |
| J | n/a |
| K | .531" |
| L | .312" |
| M | 1.125" |
| N | .250" |
| P | 5.000" |
| Q | 2.00" |
| Weight | 0.2640 |
