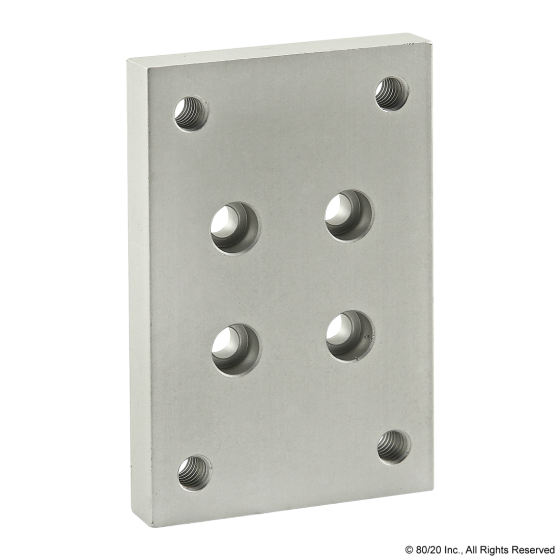

2418 - 10 Series Flange Mount Caster Base Plate
The flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
Suggested Hardware:
Mount to T-Slot
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3491 | 4 | Bolt Assembly: 1/4-20 x .500" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |

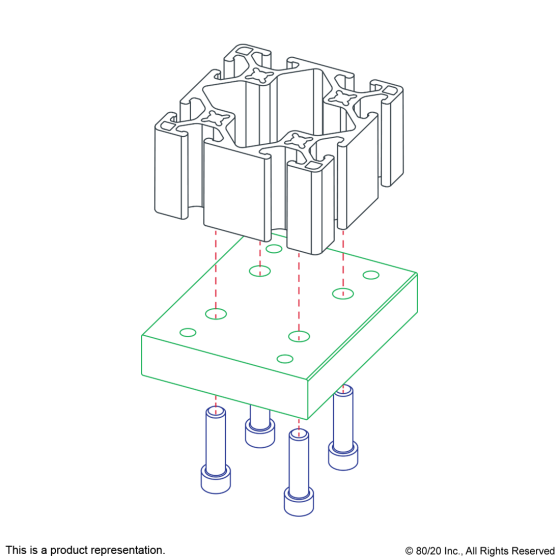

Mount to Profile End
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
|
3064 | 4 |
1/4-20 x .750" Socket Head Cap Screw (SHCS) |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |

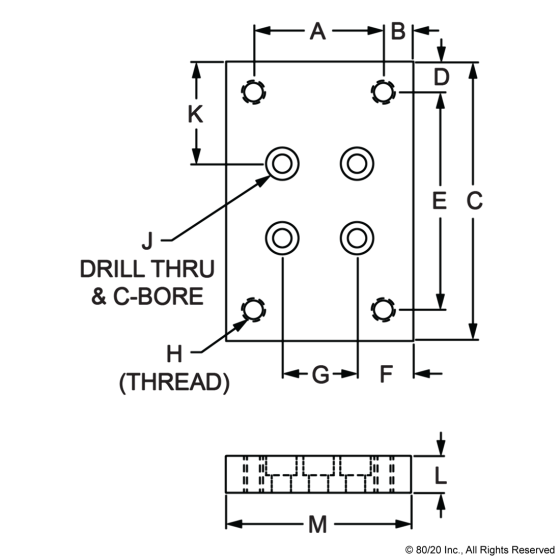

| A | 1.750" |
| B | .375" |
| C | 3.750" |
| D | .405" |
| E | 2.940" |
| F | .750" |
| G | 1.000" |
| H | 5/16-18 |
| J | 1/4 SHCS |
| K | 1.375" |
| L | .500" |
| M | 2.500" |
| Weight | 0.42400 |
