2428 - 10 Series Panel Mount Bracket

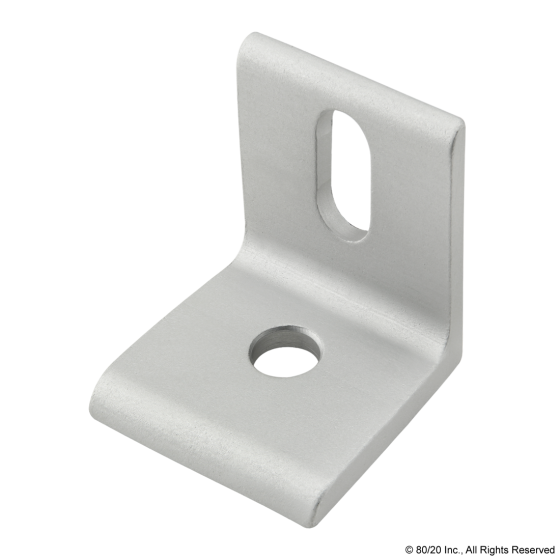

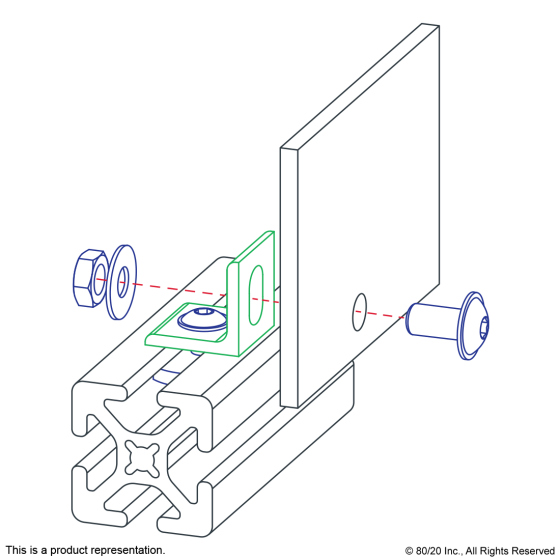

The panel mount bracket is used to mount a panel flush with a profile and has a slotted hole which allows for greater adjustability when mounting the panel. It engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. The panel mount bracket is a fastening method that can be repositioned and reused. The panel requires a through hole as well as hardware to mount the panel to the bracket, which should be based on the panel type and thickness.
USA Made from 80/20 Inc
NOTE: HARDWARE NOT INCLUDED
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3386 | 1 |
Bolt Assembly: 1/4-20 x .500" Black FBHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
| Series | 10 Series |
| Material | Aluminium |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |

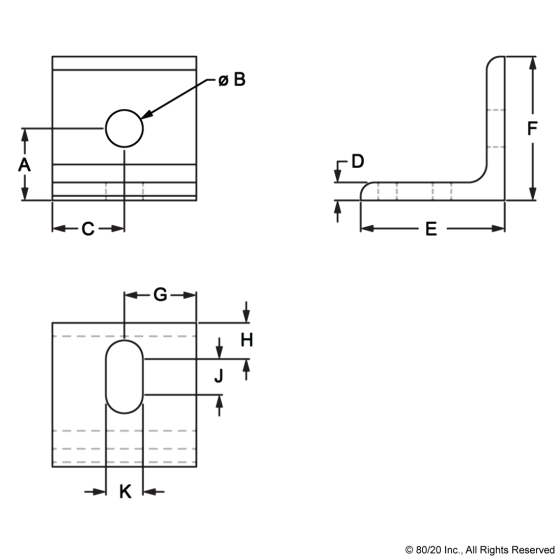

| A | .500" |
| B | .257" |
| C | .500" |
| D | .125" |
| E | 1.000" |
| F | 1.000" |
| G | .500" |
| H | .250" |
| J | .250" |
| K | .257" |
| Weight | 0.020000 |
