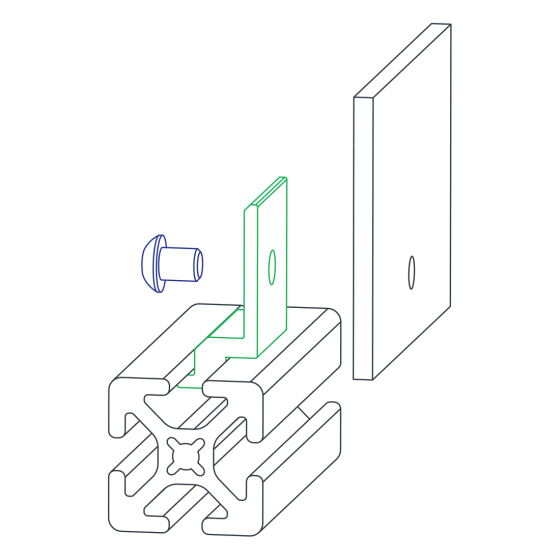

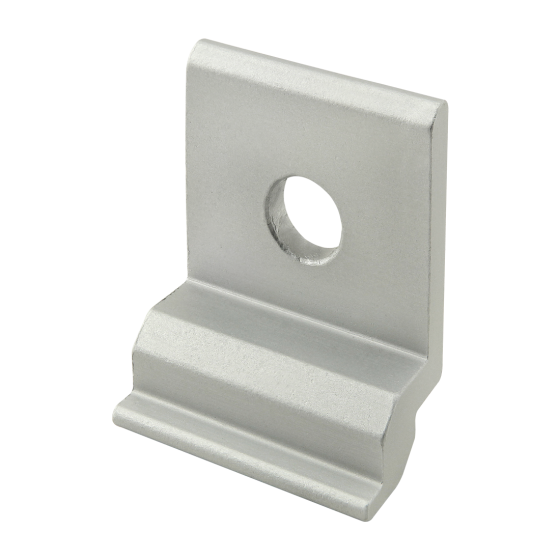

The roll-in panel mount bracket is used to mount a panel flush with a profile and is designed to allow use even when profiles are captivated. The roll-in panel mount bracket is a fastening method that can be repositioned and reused. To simplify the assembly use either a drill through or a drill through and a tap. The hardware should be based on machining type and panel thickness.
USA Made from 80/20 Inc
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6005A - T61 |
| Finish | Anodize |
| Color | Clear |

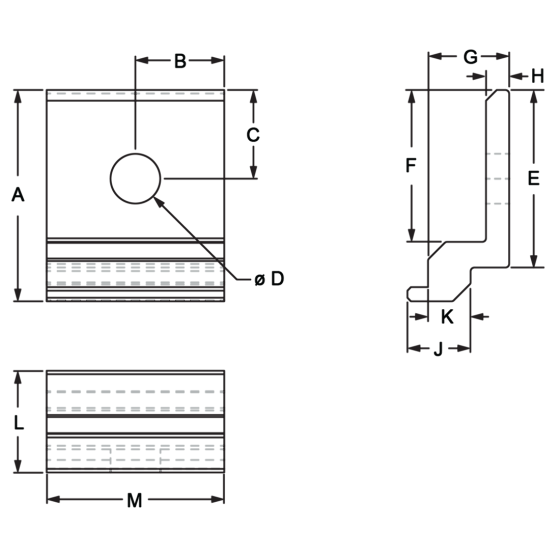

| A | 1.190” |
| B | .500” |
| C | .500" |
| D | .281" |
| E | 1.000" |
| F | .855" |
| G | .457" |
| H | .130" |
| J | .356" |
| K | .240" |
| L | .573" |
| M | 1.000" |
| Weight | 0.020000 |
