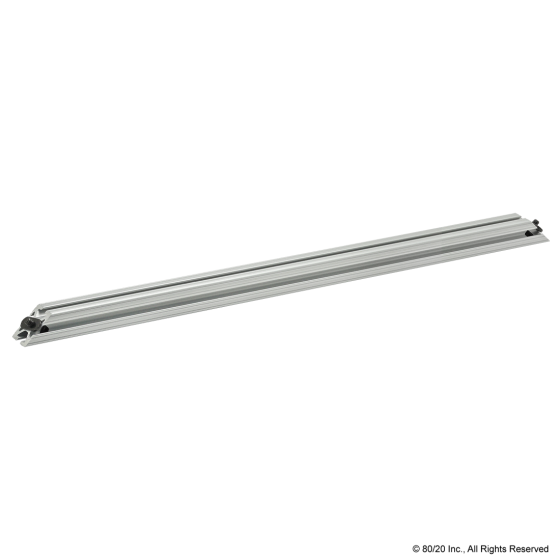

2583 - 1010 45 Degree Support, 24” Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection. Additional information on the included hardware can be found on the "Included Hardware" tab.
| Series | 10 Series |
| Profile | 1010 |
| A | 1.000" |
| B | 1.000" |
| C | 24.000" |
| Weight | 1.056000 |
