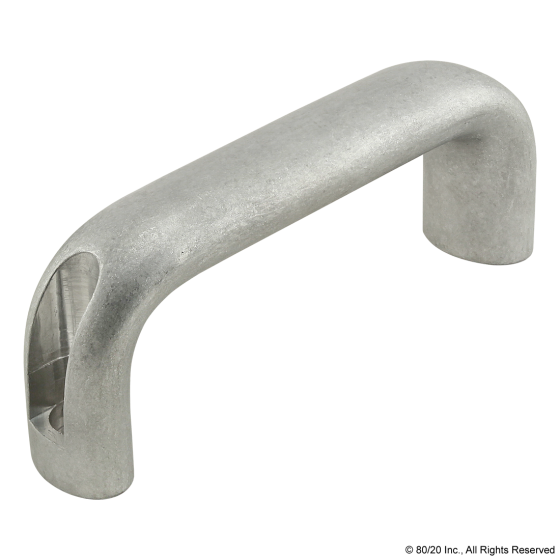

2885 - 10 & 15 Series Aluminum Door Handle (Medium)
The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Finish | Tumbled Mill |
| Color | Silver |
| Process | Extruded |

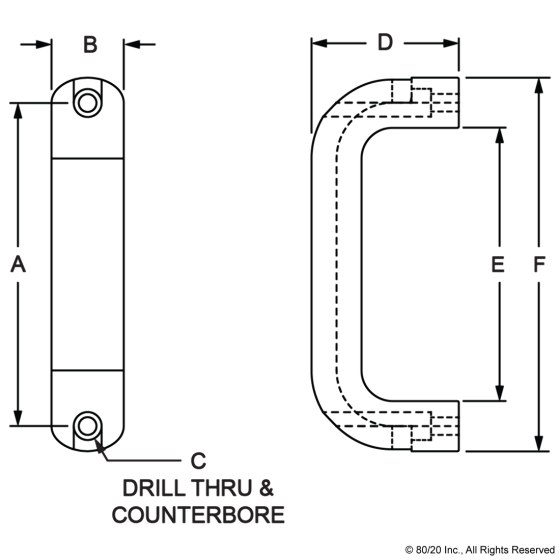

| A | 4.570" |
| B | 1.020" |
| C | 1/4 |
| D | 2.090" |
| E | 3.858" |
| F | 5.275" |
| Weight | 0.3430 |
Suggested Hardware:

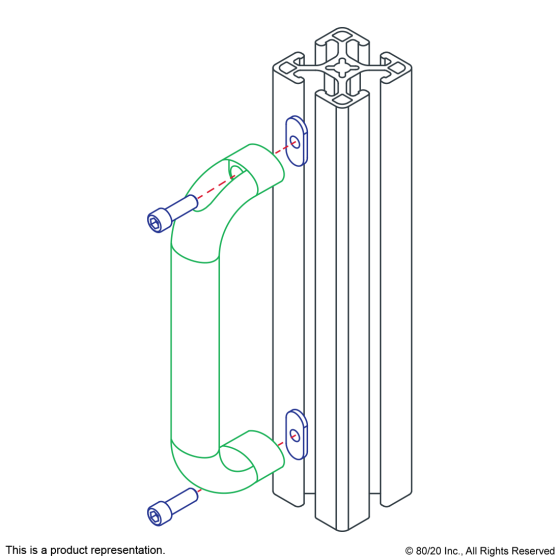

Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
3067 | 2 |
1/4-20 x .625" Socket Head Cap Screw (SHCS) |
 |
3064 | 2 |
1/4-20 x .750" Socket Head Cap Screw (SHCS) |
|
|
3382 | 2 |
1/4-20 Slide-in Economy T-Nut - Centered Thread |
