30-4302 30 Series 2 Hole - Inside Corner Bracket-1
30-4302 30 Series 2 Hole - Inside Corner Bracket-2
30-4302 30 Series 2 Hole - Inside Corner Bracket-3

30-4302 30 Series 2 Hole - Inside Corner Bracket

SKU: 30-4302

$7.11 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

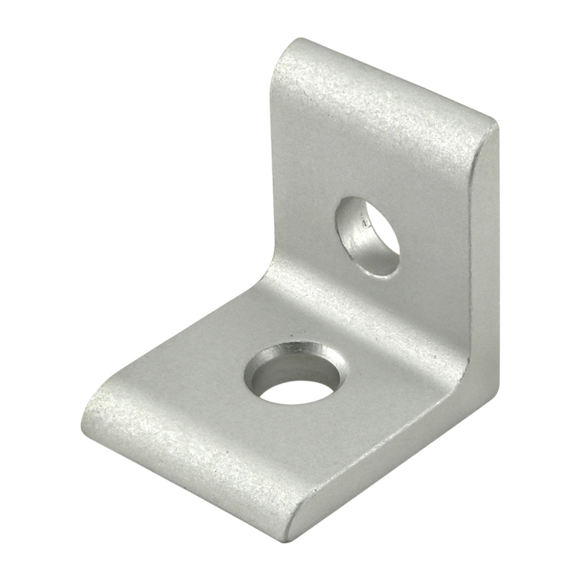

30-4302 30 Series 2 Hole - Inside Corner Bracket

The 2 hole - inside corner bracket is an external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. It is a fastening method that can be repositioned and reused.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

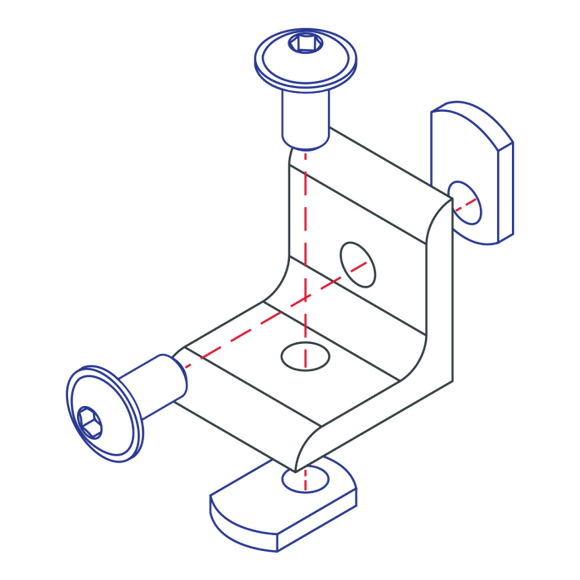

Suggested Hardware:



Series Part Number Qty Description
11-6312 2

M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
13117 2

30 Series M6 Standard Drop-in T-Nut



Series 30 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
A 30.00mm
B 30.00mm
C 4.00mm
D 15.00mm
E 13.50mm
F 27.00mm
G 6.81mm
Weight 0.034000


Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
