3202 - 15 Series 1/4-20 Standard Slide-in T-Nut

SKU: 3202

$1.82 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

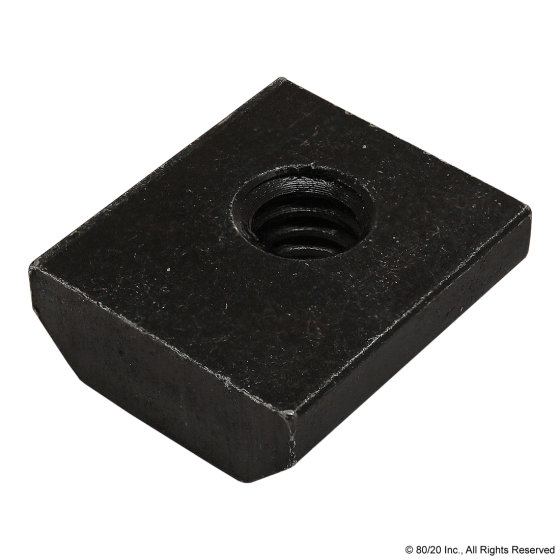

3202 - 15 Series 1/4-20 Standard Slide-in T-Nut

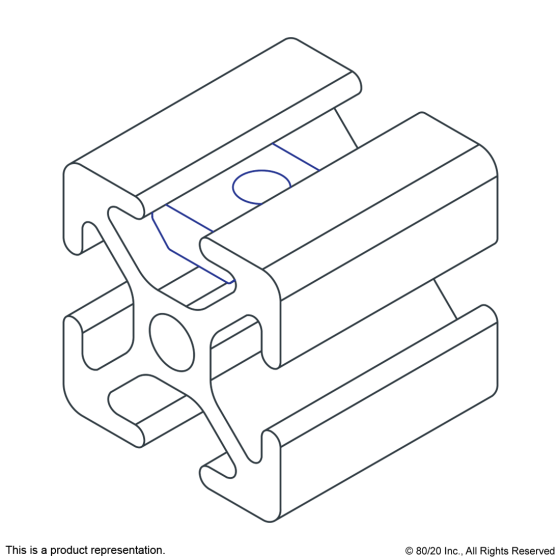

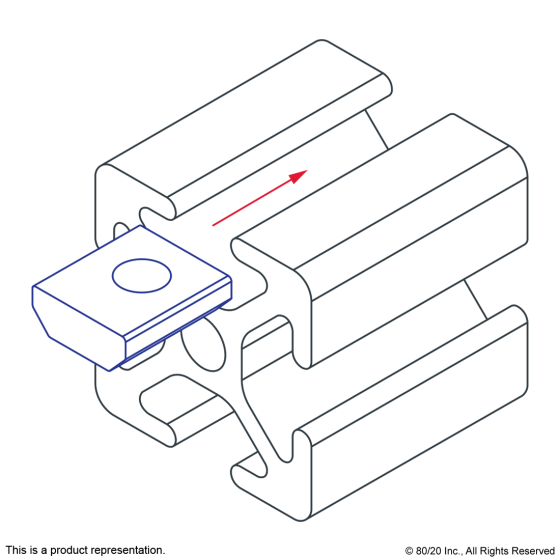

The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish. It can be customized up to 36” (91.44cm).

Series 15 Series
Type Standard T-Nut
Material Steel
Grade 1215
Finish Zinc
Color Black

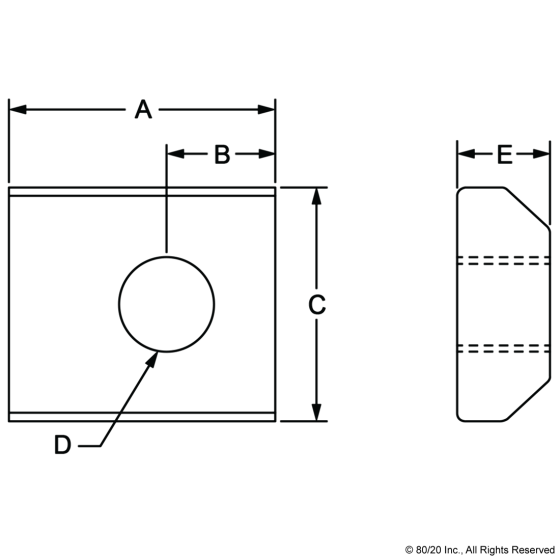

A .700"
B .281"
C .625"
D (Thread) 1/4-20
E .243"
Weight 0.0240

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
