3280 1/4-20 Double Slide-in Economy T-Nut

SKU: 3280

$1.57 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

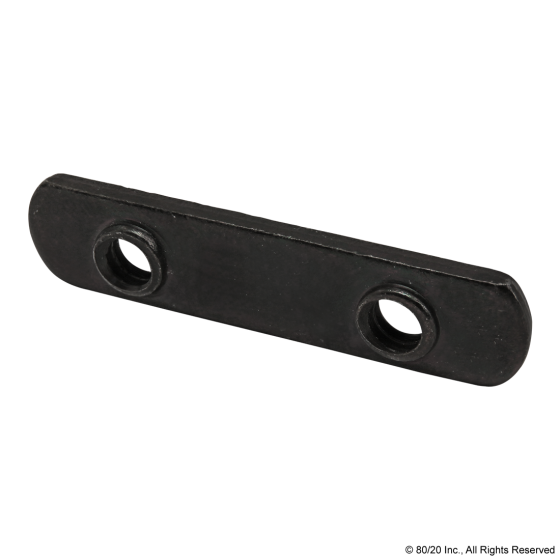

Double Slide-in Economy T-Nut

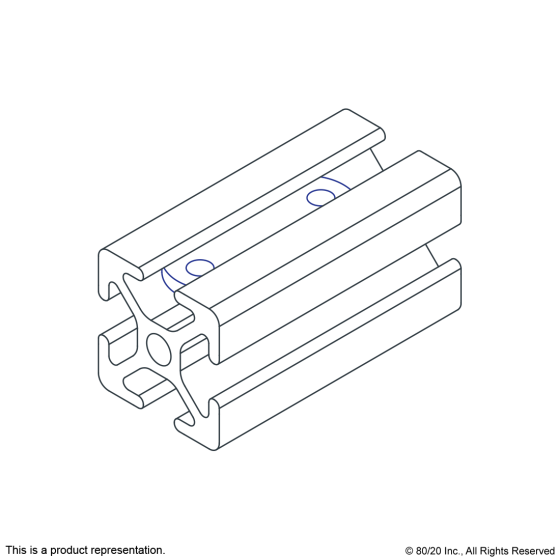

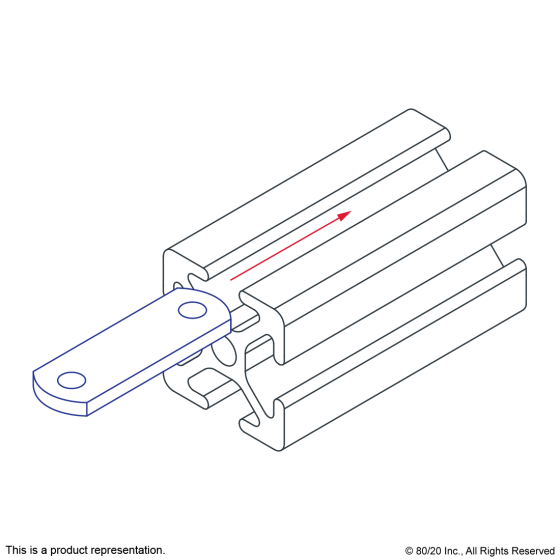

The double slide-in economy T-nut is a fastening option that saves time and simplifies the assembly process. It loads from the profile ends and is available with options in size and finish. The pilot projection adds additional threading for increased strength. There is also a triple slide-in economy T-nut available. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.

Series 10 Series
Material Steel
Grade 1010
Finish Zinc
Color Black
A 1.875"
B 1.0"
C
.443
D (Thread)
 1/4-20
E .05"
F .144"
Weight 0.0190

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
