SKU: 33470

$11.86 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

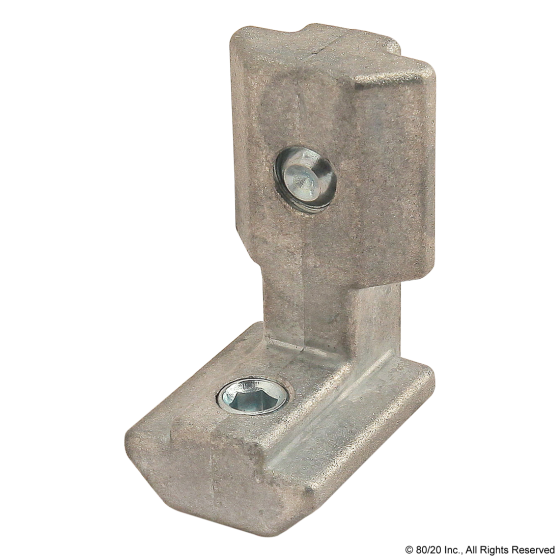

33470 - Hidden Corner Connector Inside-Outside

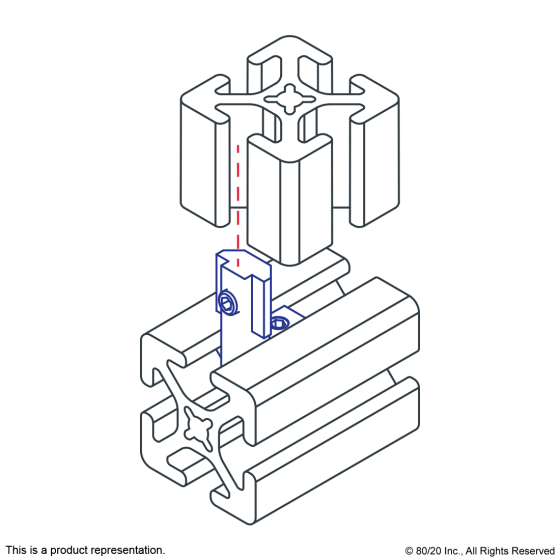

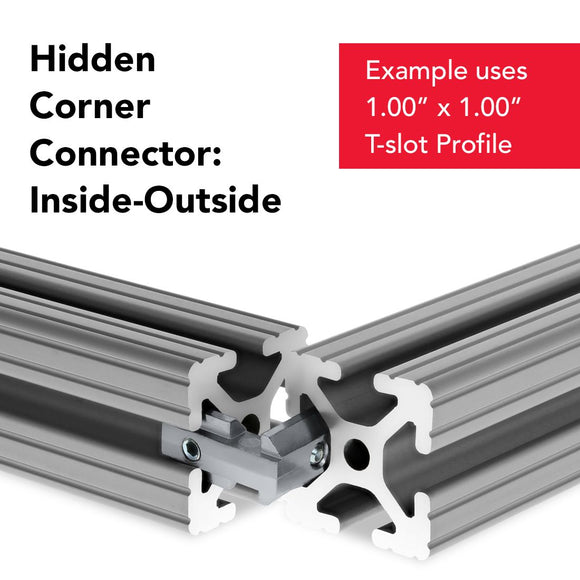

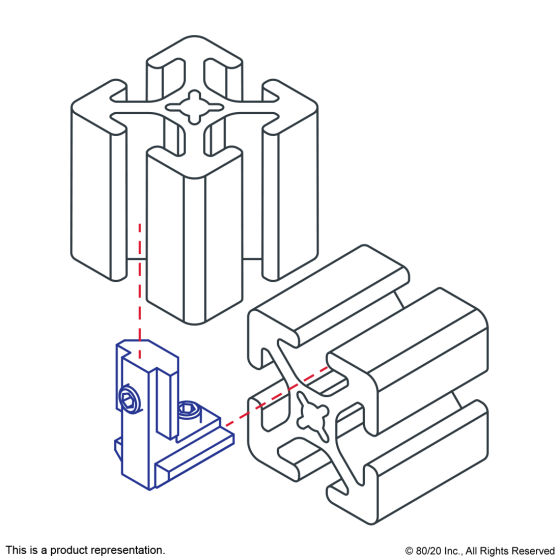

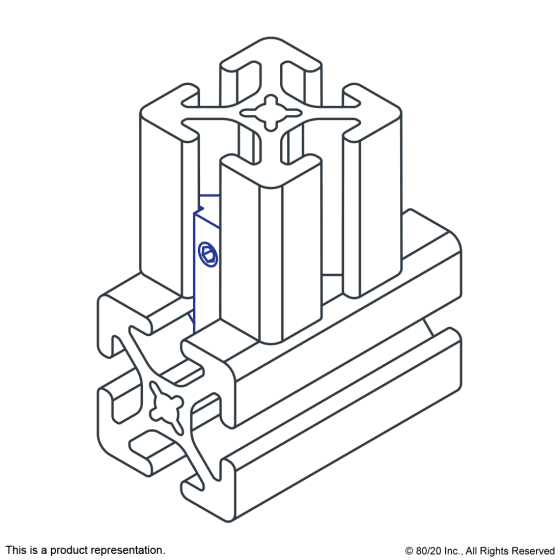

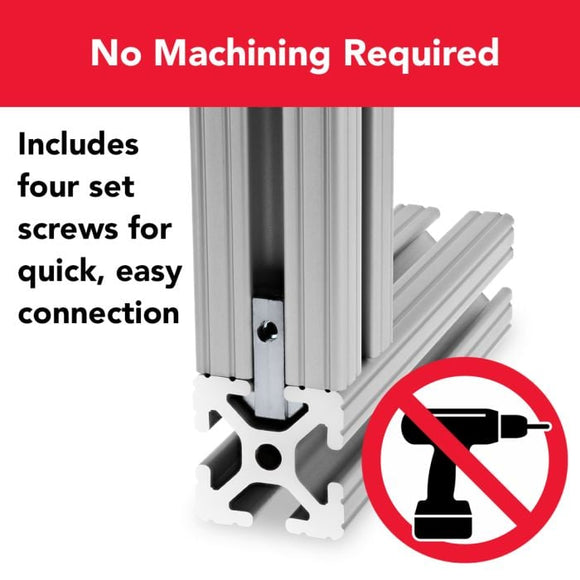

The hidden corner connector provides a 90 degree hidden corner connection. The corner connector comes with set screws that allow for quick, easy connections. This connection can be between the inside of two profiles or between the inside of one profile and the outside of the second profile. The hidden corner connector is die cast and does not require any machining, making it a cost-effective fastening option.


Series 15 Series, 30 Series, 40 Series
Type Inside-Outside
Material Zinc
A .827"
B .732"
C .236"
D .307"
E .621"
F .323"
G .228"
H .638"
J 1.181"
K 5°
L .228"
M .313"
N M6 X 12
Weight 0.052000

Please contact sales@rmmc.net for quotes for custom cutting and machining
