3364 - 15 Series 90 Degree Inside Corner Connector

SKU: 3364

$21.06 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

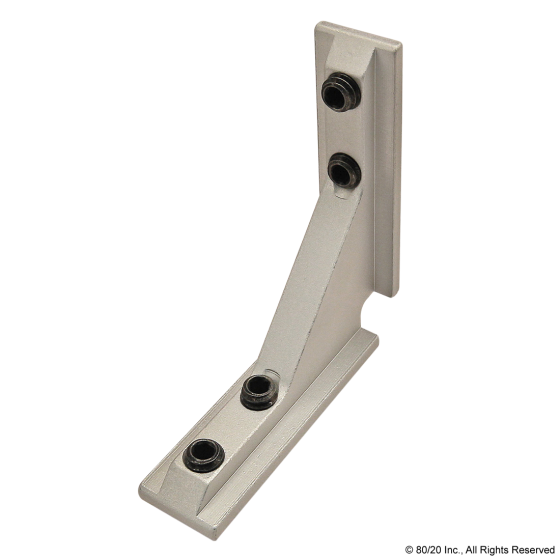

15 Series 90 Degree Inside Corner Connector

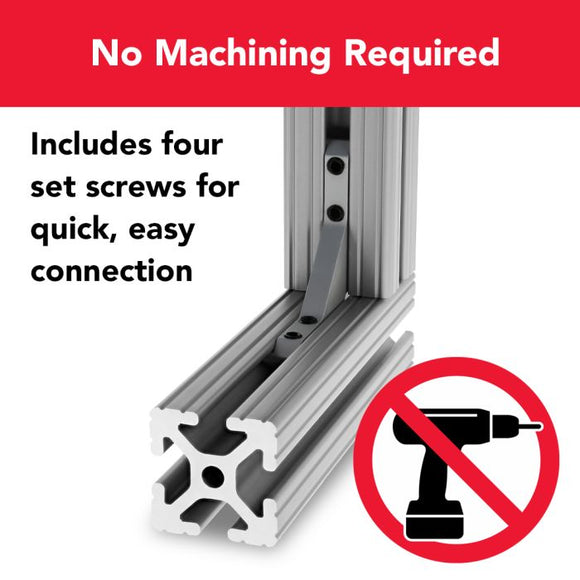

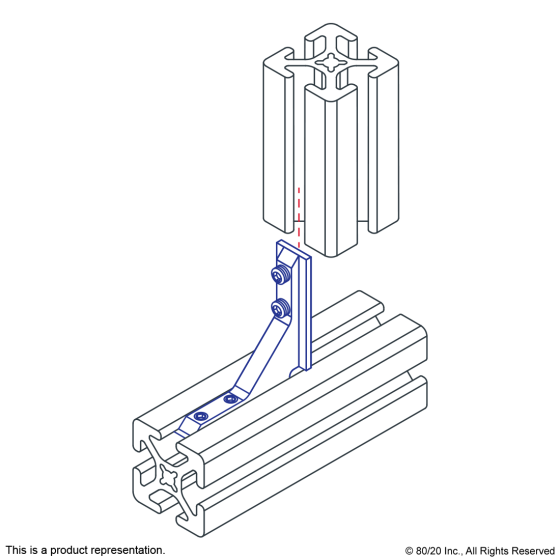

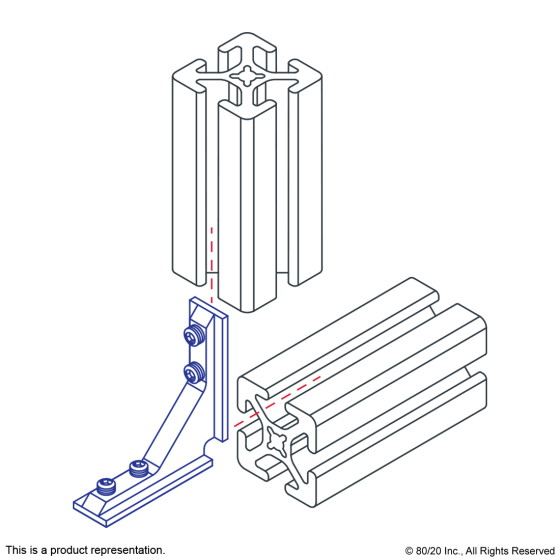

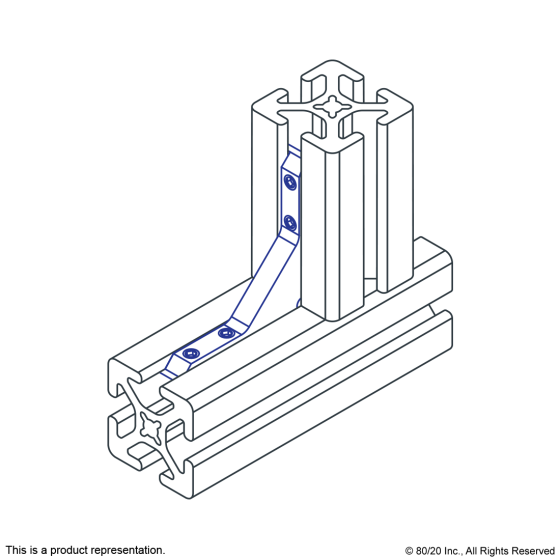

The 90 degree inside corner connector is a strong method for creating 90 degree connections between profiles. There are options available in aluminum or zinc. The required hardware is included with the connectors and no machining services are required, making it a cost-effective fastening method. The zinc connector has a through-hole for panel mounting.

Series 15 Series, 40 Series
Material Aluminum
Finish Anodize
A .625”
B .313"
C .312"
D .937”
E .436"
F 2.50"
G .655"
H n/a
J 1/4-20 X 1/2”
Weight 0.097000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
