3376 - 1/4-20 Roll-In T-Nut with Flex Handle-1
3376 - 1/4-20 Roll-In T-Nut with Flex Handle-2
3376 - 1/4-20 Roll-In T-Nut with Flex Handle-3
3376 - 1/4-20 Roll-In T-Nut with Flex Handle-4

3376 - 1/4-20 Roll-In T-Nut with Flex Handle

SKU: 3376

$3.82 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

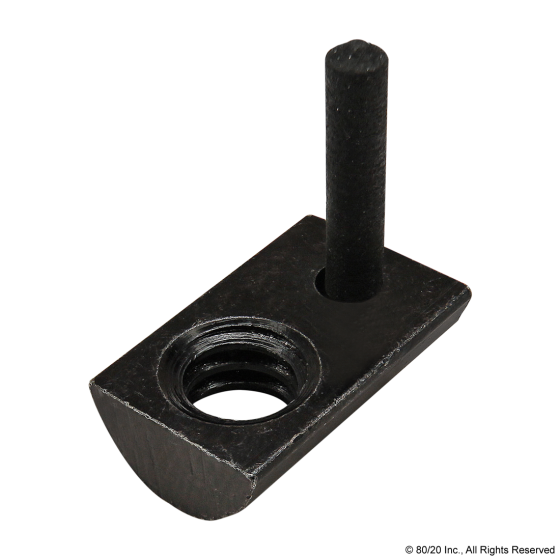

1/4-20 Roll-In T-Nut with Flex Handle

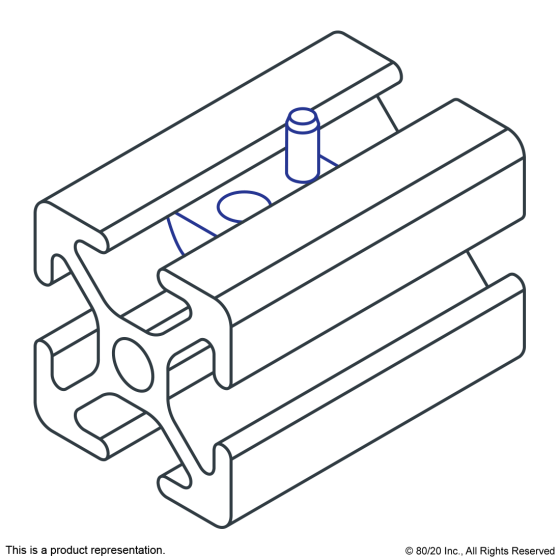

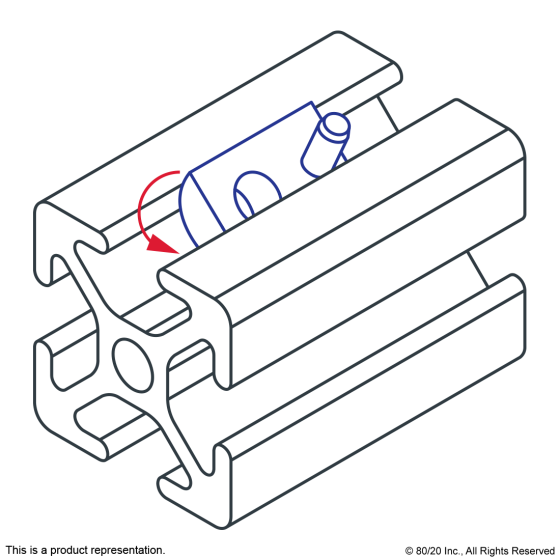

The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.

Series 10 Series
Material Steel
Grade 1215
Finish Zinc
Color Black
A .620"
B .120"
C .201"
D .395"
E (Thread) 1/4-20
F .116"
G .200"
H .456"
Weight 0.008000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
