SKU: 3676

$0.98 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

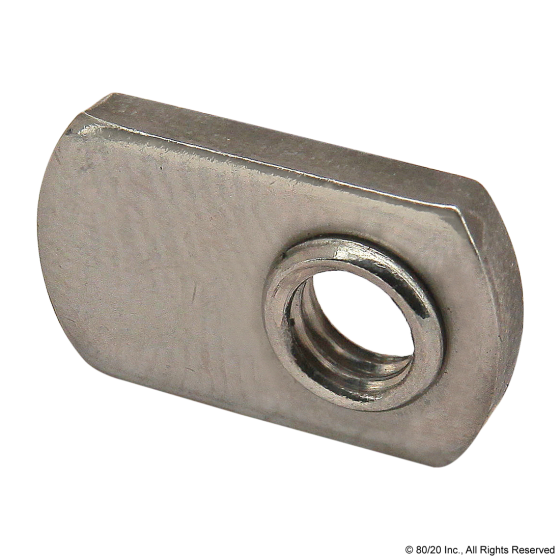

3676 - 10-32 Slide-in Economy T-Nut - Offset Thread

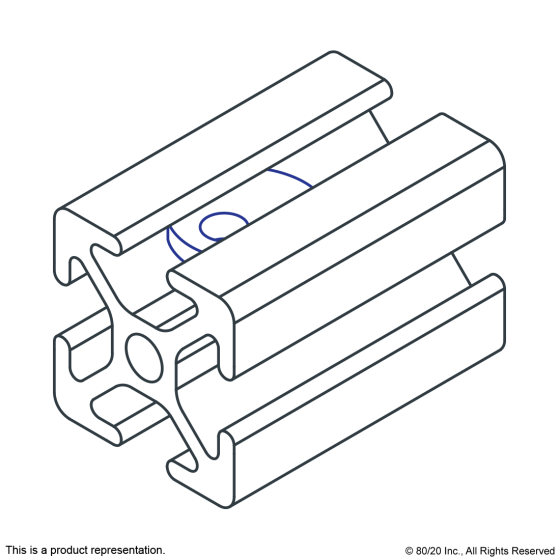

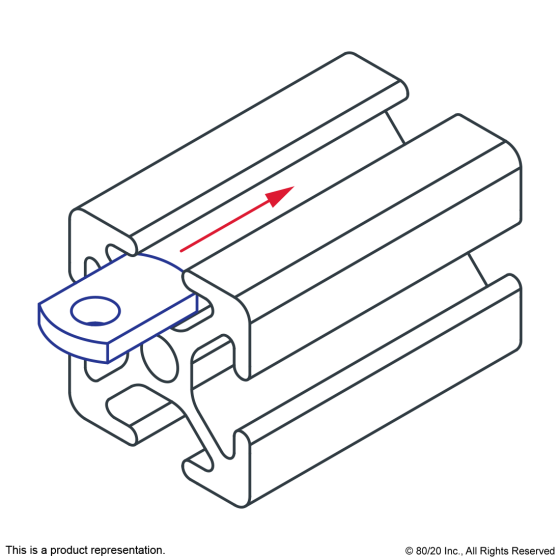

The slide-in economy T-nut with offset thread is a cost-effective fastening option available with options in size, material, and finish. It loads from the profile ends and has a pilot thread projection that adds additional threading for increased strength. The offset thread of the slide-in economy T-nut creates clean connections, making it ideal for corner connections because the T-nut does not extend beyond the length of the profile. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.

Series 10 Series
Material Stainless-Steel
Grade 304 Stainless
Finish Stainless
Color N/A

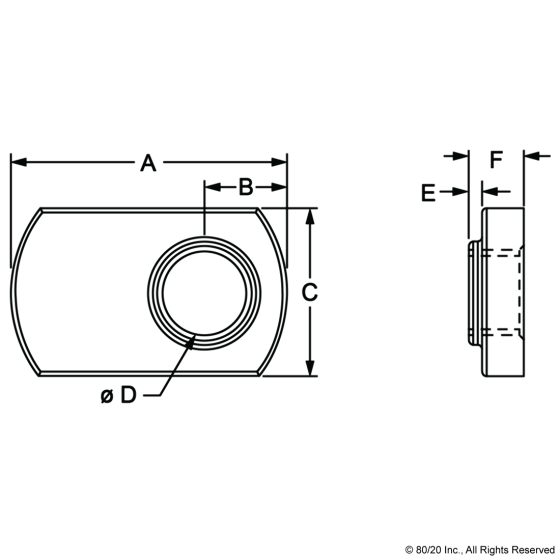

A .625"
B .187"
C .380"
D (Thread) 10-32
E .030"
F .124
Weight 0.005000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
