3873 - 10 Series M6 Standard Slide-in T-Nut

SKU: 3873

$2.25 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

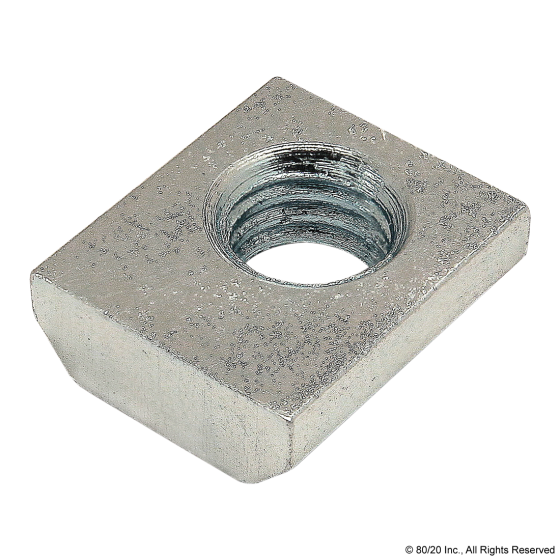

3873 - 10 Series M6 Standard Slide-in T-Nut

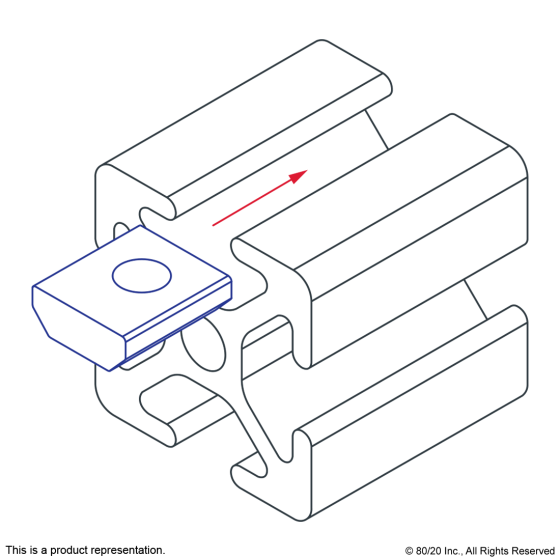

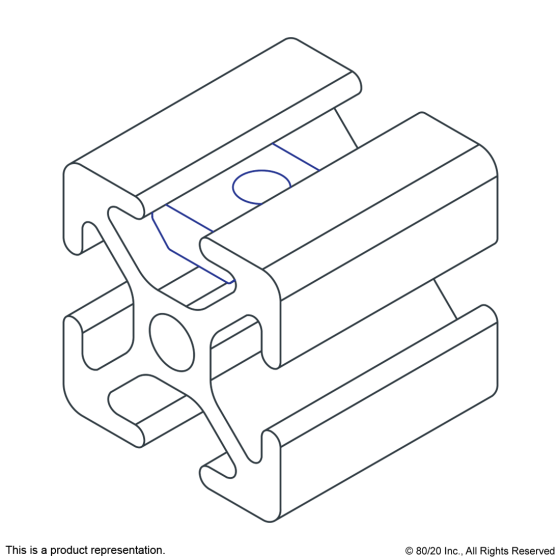

The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish. It can be customized up to 36” (91.44cm).

Series 10 Series
Type Standard T-Nut
Material Steel
Grade 1215
Finish Zinc
Color Bright

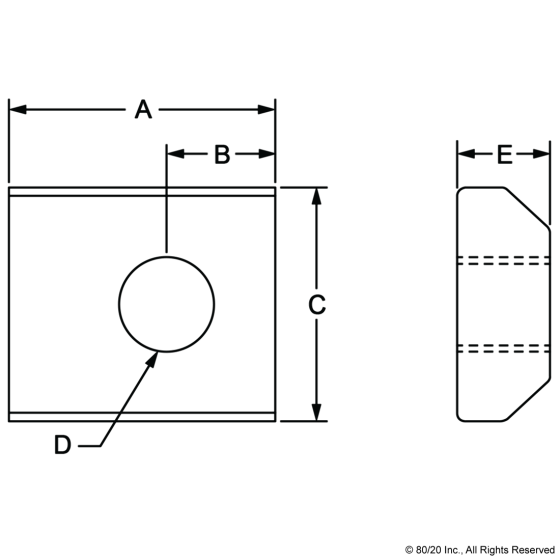

A .490"
B .200"
C .431"
D (Thread) M6 X 1.0
E .171"
Weight 0.007000

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
