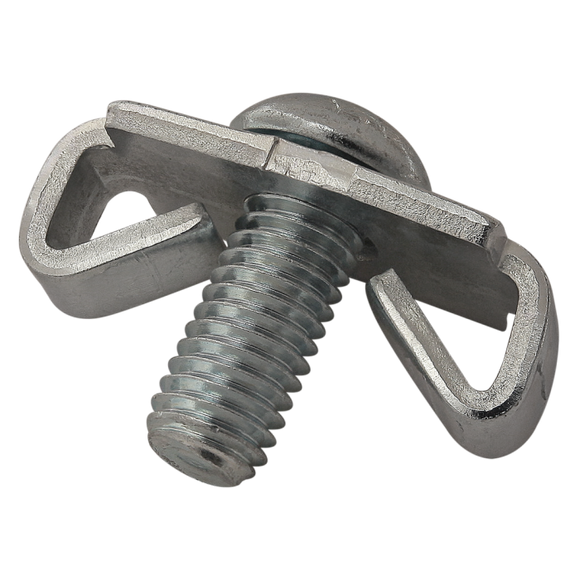

40-3891 - Standard End Fastener, M8

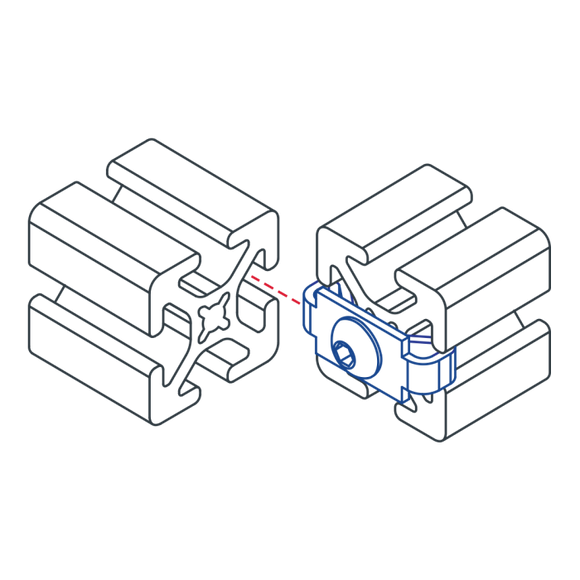

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.
| Part Number | Qty | Description |
|---|---|---|
| 40-3679 | 1 | 40 Series Standard End Fastener Clip |
| 3819 | 1 |
M8 x 25.00mm Button Head Socket Cap Screw (BHSCS) |
| Series | 40 Series |
| Type | Assembly |
| Material | Steel |
| Color | Bright |

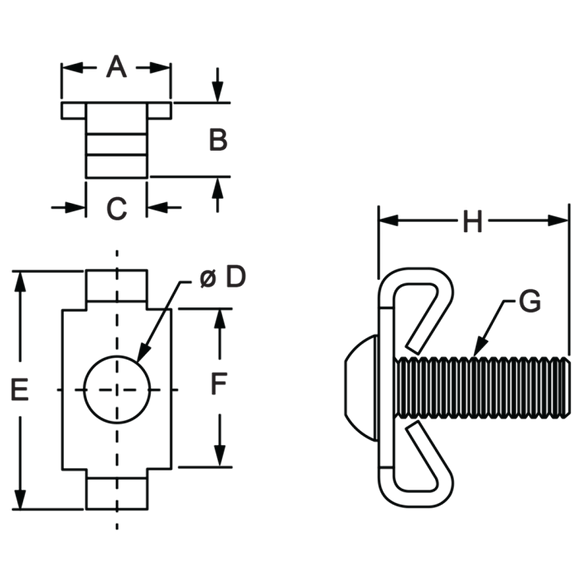

| A | 15.87mm |
| B | 11.43mm |
| C | 7.62mm |
| D | 8.63mm |
| E | 33.02mm |
| F | 25.40mm |
| G | M8 |
| H | 25.00mm |
| Weight | 0.047000 |
